 Engine compartment

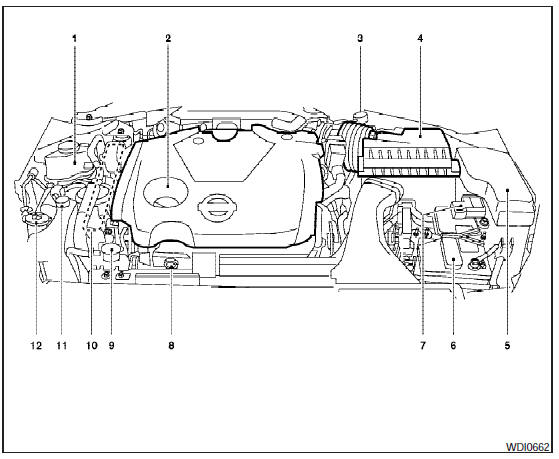

 Engine compartment check locations

1. Power steering fluid reservoir.

2. Engine oil filler cap.

3. Brake fluid reservoir.

4. Air cleaner.

5. Fuse block.

6. Battery.

7. Fuse/fusible link box.

8. Engine oil dipstick.

9. Radiator cap.

10. Drive belt location.

11. Engine coolant reservoir *.

12. Window washer fluid reservoir *.

NOTE:

* Side covers removed for clarity.

See the page number indicated in parentheses for operating details.
