Nissan Maxima: Exterior and interior lights - Maintenance and do-it-yourself - Nissan Maxima Owners ManualNissan Maxima: Exterior and interior lights

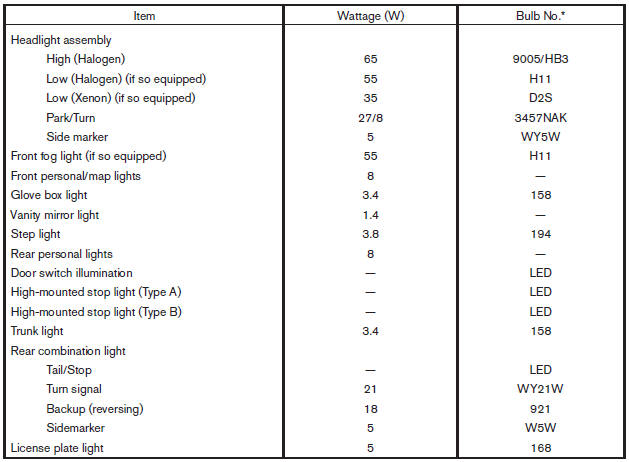

* Always check with the Parts Department at a NISSAN dealer for the latest parts

* Always check with the Parts Department at a NISSAN dealer for the latest parts information.

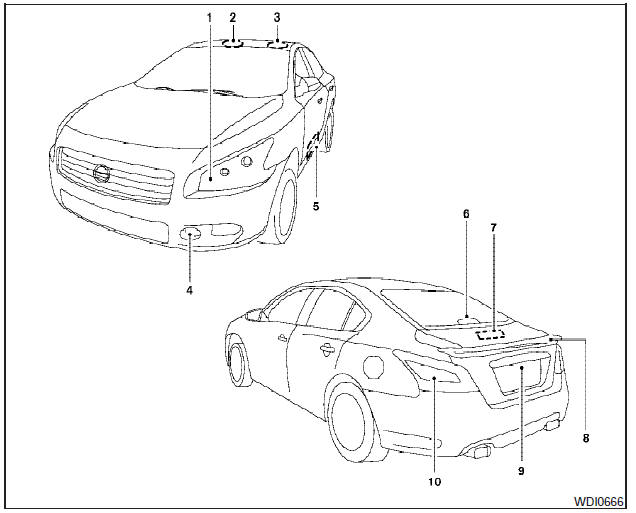

1. Headlight assembly.

1. Headlight assembly.

2. Map light.

3. Rear personal lights.

4. Fog light (if so equipped).

5. Step light.

6. High-mounted stop light (Type A).

7. Trunk light.

8. High-mounted stop light (Type B).

9. License plate light.

10. Rear combination light.

Replacement procedures
Replacement procedures

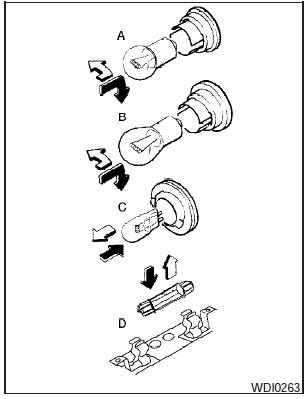

All other lights are either type A, B, C or D. When replacing a bulb, first remove the lens, lamp and/or cover.

Indicates bulb installation.Indicates bulb removal.

Indicates bulb installation.

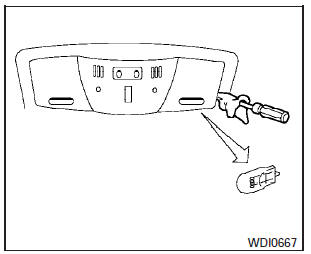

Front personal/map
Front personal/map lights

Use a cloth (1) to protect the housing.

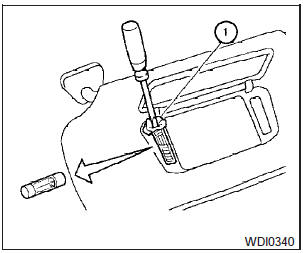

 Vanity mirror
 Vanity mirror light

Use a cloth (1) to protect the housing.

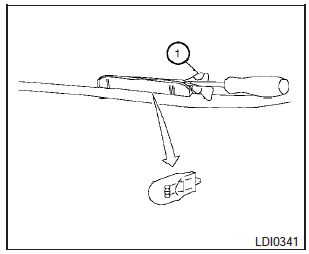

 Step light
 Step light

Use a cloth (1) to protect the housing.

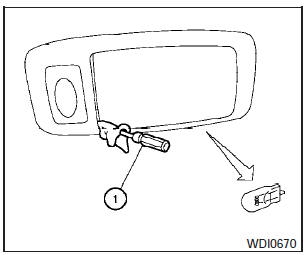

 Rear personal
 Rear personal light

Use a cloth (1) to protect the housing.

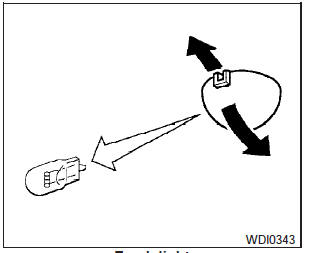

 Trunk light
 Trunk light
