Mercedes-Benz E-Class: Fuses
Important safety notes
The fuses in your vehicle serve to close down faulty circuits. If a fuse blows, all the components on the circuit and their functions stop operating.
WARNING
Only use fuses approved by Mercedes-Benz
with the specified amperage for the system in
question and do not attempt to repair or
bridge a blown fuse. Using other than
approved fuses or using repaired or bridged
fuses may cause an overload leading to a fire,
and/or cause damage to electrical
components and/or systems. Have the cause
determined and remedied by an authorized
Mercedes-Benz Center.
Blown fuses must be replaced with fuses of the same rating, which you can recognize by the color and value. The fuse ratings are listed in the fuse allocation chart. An authorized Mercedes-Benz Center will be happy to advise you.
If a fuse has blown, contact a breakdown service or an authorized Mercedes-Benz Center.
If the newly inserted fuse also blows, have the cause traced and rectified at a qualified specialist workshop, e.g. an authorized Mercedes-Benz Center.
Only use fuses that have been approved for Mercedes-Benz vehicles and which have the correct fuse rating for the system concerned. Otherwise, components or systems could be damaged.
- Before changing a fuse

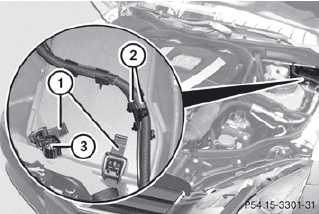

- Fuse box in the engine compartment

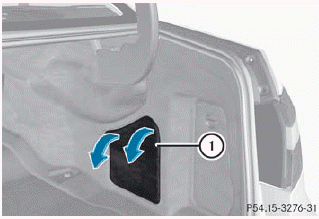

- Fuse box in the trunk

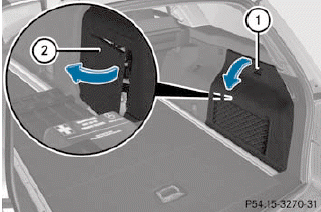

- Fuse box in the cargo compartment
Tow-starting (emergency starting)
Vehicles with automatic transmission must not be started by tow-starting. This could otherwise damage the transmission. ...Before changing a fuse
•► Park the vehicle and apply the parking brake. •► Switch off all electrical consumers. •► Remove the SmartKey from the ignition lock. The fuses are located in various ...See also:
