BMW 5 Series: Ski bag - Interior equipment - Controls - BMW 5 Series Owners ManualsBMW 5 Series: Ski bag

Capacity

The ski bag can be used to transport up to four pairs of skis with a length of up to 6 ft/2.10 m or, depending on the binding, up to two snowboards with a length of up to 5 ft/1.60 m.

Preparing and loading the ski bag

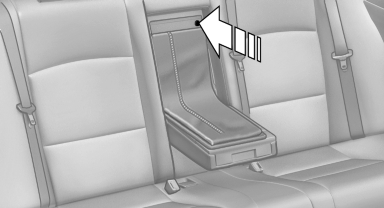

1. Fold open the center armrest on the inside.
2. Open the inside cover and cargo area by pressing the button

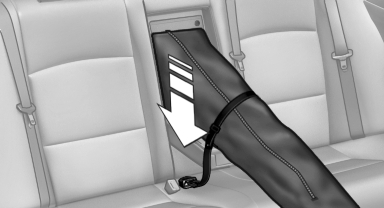

3. Lay out the ski bag.

3. Lay out the ski bag.
4. Load the ski bag. If necessary, wrap the sharp edges of the skis
5. Insert the tongue plate into the belt buckle.

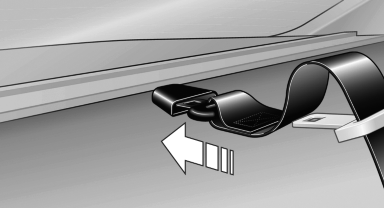

6. Tighten the retaining strap.

6. Tighten the retaining strap.

Securing the ski bag

Secure the ski bag by tightening the retaining Securing the ski bag Secure the ski bag by tightening the retaining strap; otherwise, the contents could present a source of danger to the passengers, for example during braking or evasive maneuvers.◀

Removing the ski bag

The ski bag can be removed entirely, e.g., to dry quickly or to use other inserts.

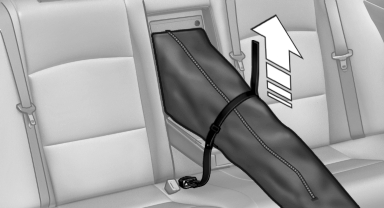

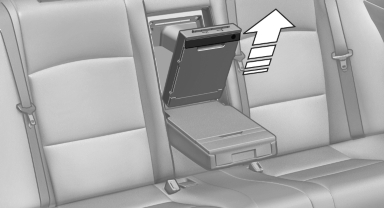

1. Pull the handle forward and lift the ski bag

1. Pull the handle forward and lift the ski bag out.
2. Close the cover in the cargo area.

More information on the various inserts available can be obtained from your service center.

    Through-loading system
    General information The cargo area can be enlarged by folding down the rear seat backrest. The rear seat backrest is divided into two parts at a ratio of 60 to 40. The sides can be folded down ...
