Ford Fusion: Head restraints - Seats - Ford Fusion Owners manualFord Fusion: Head restraints

Adjusting the head restraint

Adjusting the head restraint

WARNING:

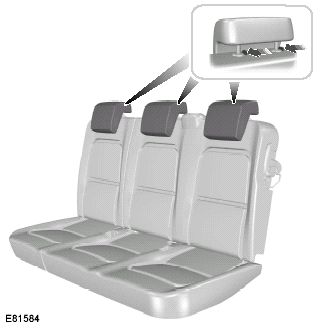

Raise rear head restraint when therear seat is occupied by apassenger or a child restraint.

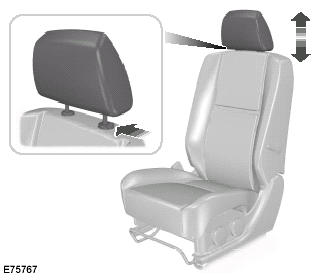

Adjust the head restraint so that the topof it is level with the top of your head.

Removing the head restraint

Press the locking buttons and remove thehead restraint.

    Rear seats
    WARNINGS: Make sure that the seats and theseatbacks are secure and fullyengaged in their catches. When folding the seatbacks down,take care not to get your fingerscaught between the seatback andseat ...

    Heated seats
    Driver side Passenger side CAUTION: Operating the heated seats with theengine off will drain the battery. The heated seats will operate when theignition switch is in position II. ...
