Nissan Maxima: How to use the INFO button - Monitor, climate, audio, phone and voice recognition systems - Nissan Maxima Owners ManualNissan Maxima: How to use the INFO button

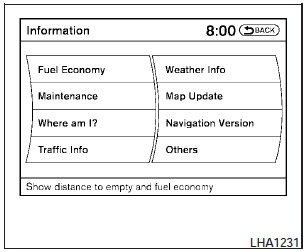

Press the INFO button; the display screen shows vehicle and navigation information

Press the INFO button; the display screen shows vehicle and navigation information for your convenience.

The information shown on the screen should be a guide to determine the condition of the vehicle.

See the following for details.

 Fuel economy
 Fuel economy

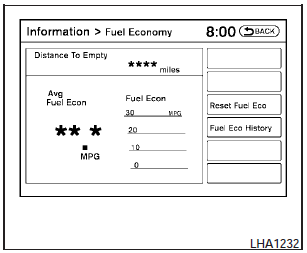

Press the INFO button, then select the Fuel Economy key using the NISSAN controller to display Distance to Empty, Average Fuel Economy and Fuel Economy History.

Distance to empty (MI or km)

The Distance to Empty (DTE) mode provides you with an estimation of the distance that can be driven before refueling. The DTE is constantly calculated based on the amount of fuel in the fuel tank and the actual fuel consumption. The display is updated every 30 seconds. When the fuel level is low, the DTE display will change to (*).

NOTE:

- If the amount of fuel added while the ignition switch is OFF is small, the display just before the ignition switch is placed in the OFF position may continue to be displayed.

- When driving uphill or rounding curves, the fuel in the tank shifts, which may momentarily change the display.

Average fuel economy (MPG or L/100 km)

The Average Fuel Economy is calculated based on fuel consumption since the last reset. The display is updated every 30 seconds and 1/3 mi (500 m). After a reset or connecting the battery cables, the display might show (**.*).

Resetting fuel economy

The average fuel economy calculation can be reset to 0. Press the INFO button and select the Fuel Economy key, then select the Reset Fuel Eco key using the NISSAN controller.

 Fuel economy record
 Fuel economy record

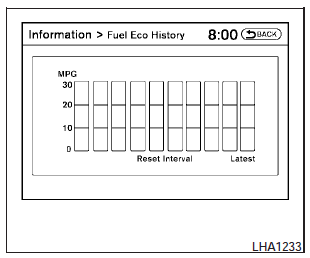

Press the INFO button, then select the Fuel Economy key, then select the Fuel Eco History key using the NISSAN controller.

The average fuel consumption history will be displayed in a graph form along with the average fuel for the previous Reset-to-Reset period.

 Maintenance items
 Maintenance items

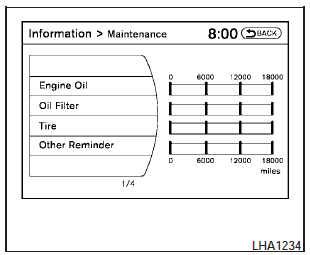

Press the INFO button and select the Maintenance key using the NISSAN controller; the maintenance information will be displayed on the screen.

 Changing the maintenance
 Changing the maintenance interval

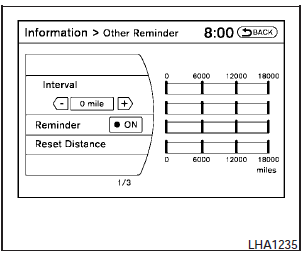

Select one of the maintenance reminder keys using the NISSAN controller to display the screen to change the maintenance interval. You can choose between Engine Oil, Oil Filter, Tire and Other Reminder.

Select the Interval key using the NISSAN controller.

Touch the + or - keys or turn the NISSAN controller to choose the desired distance.

To accept the changes, press the BACK button.

Resetting the maintenance interval

To reset the reminder schedule (distance) to 0 mi (km), select the Reset Distance key using the NISSAN controller.

 Displaying the
 Displaying the maintenance notice reminder

Select the Interval Reminder ON key to display the MAINTENANCE INFORMATION automatically at the set maintenance interval. The indicator light will illuminate when it is ON.

The MAINTENANCE NOTICE screen will be automatically displayed as shown when both of the following conditions are met:

- The vehicle is driven the set distance and the ignition switch is placed in the OFF position.

- The ignition switch is placed in the ON position the next time the vehicle will be driven.

To return to the previous display after the MAINTENANCE NOTICE screen is displayed, press the BACK button.

The MAINTENANCE NOTICE screen displays each time the key is turned ON until one of the following conditions are met:

- The Reset key is selected.

- The Interval Reminder ON key is set to OFF (indicator light not illuminated).

- The maintenance interval is set again.

Where am I?

Refer to the separate Navigation System Owner s Manual for information regarding this item.

Traffic Info Refer to the separate Navigation System Owner s Manual for information regarding this item.

Weather Info Refer to the separate Navigation System Owner s Manual for information regarding this item.

Map Update Refer to the separate Navigation System Owner s Manual for information regarding this item.

Navigation Version Refer to the separate Navigation System Owner s Manual for information regarding this item.

Other options

For Voice Recognition settings, refer to NISSAN Voice Recognition system in this section.

For GPS Position, refer to the separate Navigation System Owners Manual.
