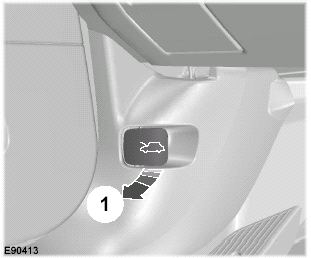

1. Pull the lever.

Opening the bonnet

1. Pull the lever.

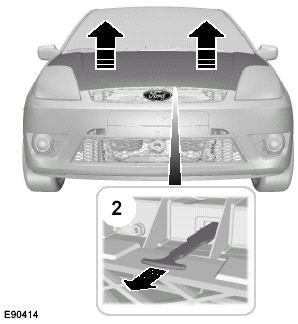

2. Raise the bonnet slightly and pull thecatch towards you.

2. Raise the bonnet slightly and pull thecatch towards you.

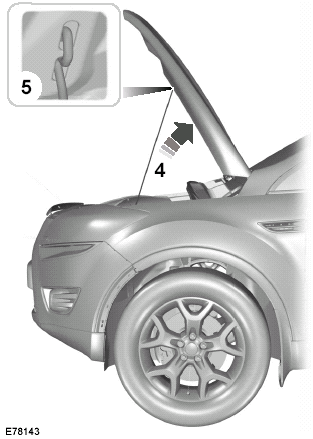

3. Open the bonnet and support it withthe strut.

3. Open the bonnet and support it withthe strut.

Closing the bonnet

Note: Make sure that the bonnet isclosed properly.

Lower the bonnet and allow it to dropfrom under its own weight for the last20 – 30 centimetres.
