Chrysler 200: To Open And Close The Hood
To open the hood, two latches must be released.
1. Pull the hood release lever located under the left side of the instrument panel.

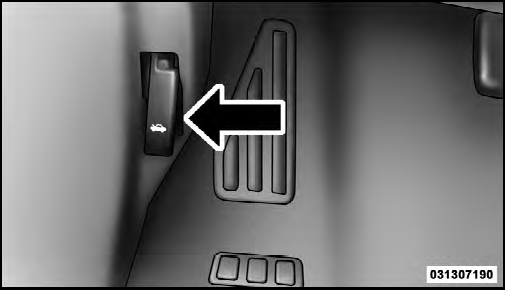

Hood Release Lever
2. Then lift the secondary latch located under the front edge of the hood, near the center and raise the hood.

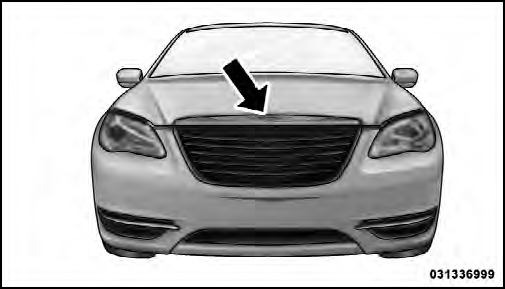

Hood Safety Catch
Use the hood prop rod to secure the hood in the open position. Place the upper end of the prop rod in the hole on the left underside of the hood.

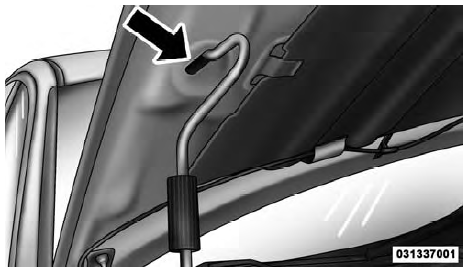

Hood Prop Rod Hole Location
NOTE:
Before closing the hood, make sure to stow the
prop rod in its proper location.
CAUTION!
To prevent possible damage, do not slam the hood to
close it. Use a firm downward push at the center of
the hood to ensure that both latches engage.
WARNING!
Be sure the hood is fully latched before driving your
vehicle. If the hood is not fully latched, it could open
when the vehicle is in motion and block your vision.
Failure to follow this warning could result in serious injury or death.
