Chrysler 200: Windshield Wipers And Washers
The wipers and washers are operated by a switch on the control lever. The lever is located on the right side of the steering column.

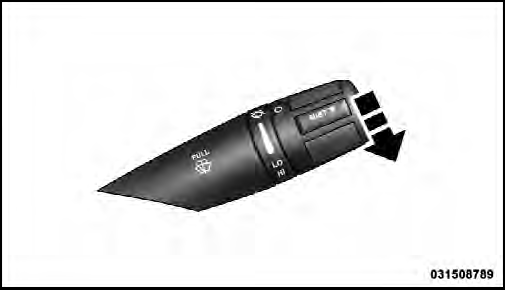

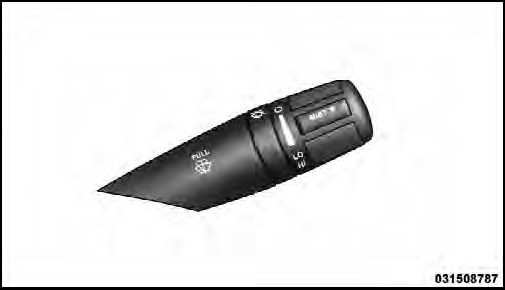

Windshield Wiper/Washer Lever

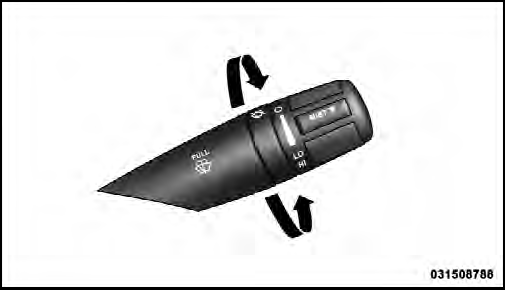

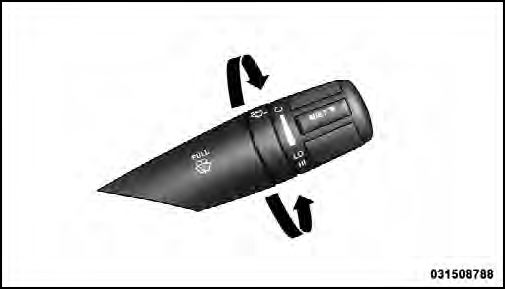

Rotate the end of the lever to the LO position for low-speed wiper operation, or to the HI position for high-speed wiper operation.
Changing Wiper Speeds
NOTE:
The wipers will automatically return to the park
position if you turn the ignition switch OFF while they
are operating. The wipers will resume operation when
you turn the ignition switch to the ON position again.
CAUTION!
• Turn the windshield wipers off when driving
through an automatic car wash. Damage to the
windshield wipers may result if the wiper control
is left in any position other than off.
• Always remove any buildup of snow that prevents the windshield wiper blades from returning to the off position. If the windshield wiper control is turned off and the blades cannot return to the off position, damage to the wiper motor may occur.
- Intermittent Wiper System
- Windshield Washers
- Mist Feature
- Headlights With Wipers Feature (Available With Automatic Headlights Only)
Map/Reading/Interior Lights
These lights are mounted between the sun visors above
the rearview mirror. Each light can be turned on by
pressing the barrel. Press the barrel a second time to turn
the light off. Both of these ...
Intermittent Wiper System
Use the intermittent wiper system when weather conditions
make a single wiping cycle with a variable pause
between cycles desirable. Rotate the end of the windshield
wiper/washer control lever t ...
