Nissan Maxima: Adjustable headrest (if so equipped)

Nissan Maxima: Adjustable headrest (if so equipped) - SafetySeats, seat belts and supplemental restraint system - Nissan Maxima A35 (2009-2014) Owners ManualNissan Maxima: Adjustable headrest (if so equipped)

WARNING:

The adjustable headrests supplement the other vehicle safety systems. They may provide additional protection against injury in certain rear end collisions. Adjust the headrests properly, as specified in this section. Check the adjustment after someone else uses the seat. Do not attach anything to the adjustable headrest stalks or remove the adjustable headrests. Do not use the seat if the adjustable headrests have been removed. If the headrest was removed, reinstall and properly adjust the headrest before an occupant uses the seating position. Failure to follow these instructions can reduce the effectiveness of the adjustable headrests. This may increase the risk of serious injury or death in a collision.

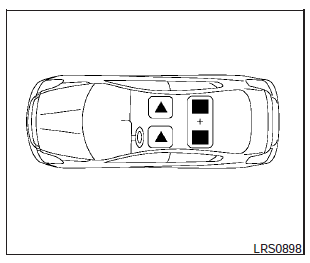

The illustration shows the seating positions equipped with adjustable headrests.

The illustration shows the seating positions equipped with adjustable headrests. All of the headrests are adjustable.

n Indicates the seating position is equipped with an adjustable headrest.

+ Indicates the seating position is not equipped with a head restraint or adjustable headrest.

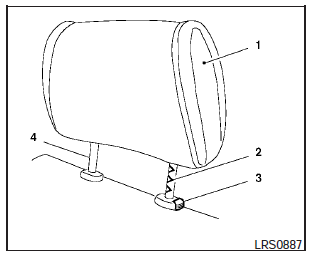

 Components
 Components

1. Adjustable headrest.

2. Adjustment notches.

3. Lock knob.

4. Stalks.

 Adjustment
 Adjustment

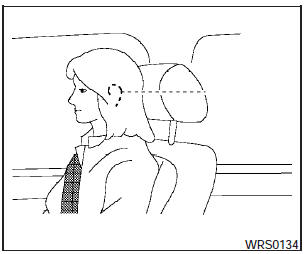

Adjust the headrest so the center is level with the center of the seat occupants ears.

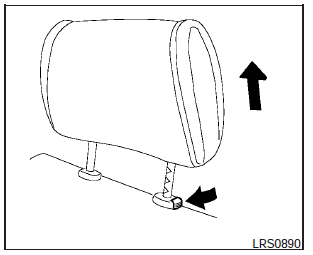

To raise the headrest, pull it up.

To raise the headrest, pull it up.

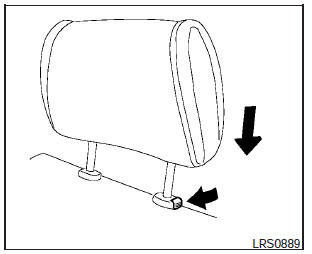

To lower, push and hold the lock knob and push the headrest down.

To lower, push and hold the lock knob and push the headrest down.

 Removal
 Removal

Use the following procedure to remove the adjustable headrests.

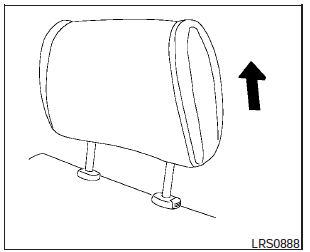

1. Pull the headrest up to the highest position.

2. Push and hold the lock knob.

3. Remove the headrest from the seat.

4. Store the headrest properly so it is not loose in the vehicle.

5. Install and properly adjust the headrest before an occupant uses the seating position.

 Install
 Install

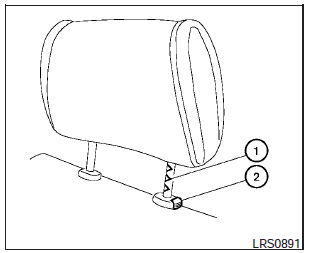

1. Align the headrest stalks with the holes in the seat. Make sure the headrest is facing the correct direction. The stalk with the adjustment notchess must be installed in the hole with the lock buttons .

2. Push and hold the lock knob and push the headrest down.

3. Properly adjust the headrest before an occupant uses the seating position.
