The advanced keyless functions (advanced keyless entry and start system) enables the following operations while the advanced key is being carried.

- Locking/unlocking the doors, and opening the trunk lid, without operating the key.

- Starting the engine without operating the key.

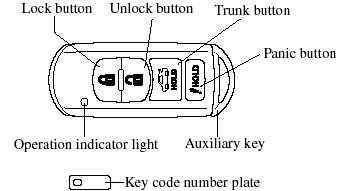

Additional functions are available using the buttons on the advanced key.

Refer to Operation Using Advanced Key Functions.

- The following operations are possible using the transmitter of the keyless entry system from a distance (Lock/Unlock/Trunk/Panic button):

- Locking/unlocking the doors.

- Opening the trunk lid.

- Opening the power windows and the moonroof.

- Operating the theft-deterrent system.

- Turning on the alarm.

- Locking/unlocking the doors or starting the engine using the auxiliary key.

WARNING:

Do not leave the key in your vehicle with children and keep them in a place where your children will not find or play with them:

Leaving children in a vehicle with the key is dangerous. This could result in someone being badly injured or even killed. Children may find these new kinds of keys to be an interesting toy to play with and could cause the power windows or other controls to operate, or even make the vehicle move.

Radio waves from the advanced key may affect medical equipment such as pacemakers:

Before using the advanced key near people who use medical equipment, ask the medical equipment manufacturer or your physician if radio waves from the advanced key will affect the equipment.

NOTE:

- The driver must carry the advanced key to ensure the system functions properly.

- Refer to Immobilizer System for information regarding keys and engine starting.

- (With theft-deterrent system).

Refer to Theft-Deterrent System for information regarding keys and the prevention of vehicle and vehicle contents theft.

- The advanced keyless functions can be turned off.

Refer to Personalization Features.

A code number is stamped on the plate attached to the key set; detach this plate

A code number is stamped on the plate attached to the key set; detach this plate and store it in a safe place (not in the vehicle) for use if you need to make a replacement key.

Also write down the code number and keep it in another safe and handy place, but not in the vehicle.

If your key is lost, consult your Authorized Mazda Dealer with the code number ready.

CAUTION:

radio waves, it may not function correctly under the following conditions: Because the advanced key uses low-intensity radio waves, it may not function correctly under the following conditions:

    key is carried with communication devices such as cellular phones. The advanced key is carried with communication devices such as cellular phones.

    key contacts or is covered by a metal object. The advanced key contacts or is covered by a metal object.

    key is near electronic devices such as personal computers or cell phones. The advanced key is near electronic devices such as personal computers or cell phones.

    electronic equipment is installed in the vehicle. Non-Mazda genuine electronic equipment is installed in the vehicle.

    which discharges radio waves near the vehicle. There is equipment which discharges radio waves near the vehicle.

    is near equipment such as wireless pay devices installed at certain gas stations. If the vehicle is near equipment such as wireless pay devices installed at certain gas stations.

power excessively if it receives highintensity radio waves. Do not place the advanced The advanced key may consume battery power excessively if it receives highintensity radio waves. Do not place the advanced key near electronic devices such as televisions or personal computers.

key, DO NOT: To avoid damage to the advanced key, DO NOT:

    key. Drop the advanced key.

    key wet. Get the advanced key wet.

    the advanced key. Disassemble the advanced key.

    key to high temperatures on places such as the dashboard or hood, under direct sunlight. Expose the advanced key to high temperatures on places such as the dashboard or hood, under direct sunlight.

    objects on the advanced key. Place heavy objects on the advanced key.

    key in an ultrasonic cleaner. Put the advanced key in an ultrasonic cleaner.

    objects close to the advanced key. Put any magnetized objects close to the advanced key.

NOTE:

- Battery life is about one year. Be sure to replace the battery as soon as you see the green KEY indicator light in the instrument cluster begin flashing for 30 seconds after turning off the engine, otherwise, you will not be able to start the engine using the advanced keyless start system once the battery is completely dead Refer to KEY warning light (red). If this occurs, you will have to either force-start the engine or use the auxiliary key Refer to Advanced Key Battery Dead Warning.

l Additional advanced keys can be obtained at an Authorized Mazda Dealer.

l Additional advanced keys can be obtained at an Authorized Mazda Dealer. Up to 6 advanced keys can be used with the advanced keyless functions per vehicle.

Advanced Key Maintenance

CAUTION:

with the correct pole facing upward. Battery leakage could occur if it is not installed Make sure the battery is installed with the correct pole facing upward. Battery leakage could occur if it is not installed correctly.

careful not to bend the electrical terminals or get oil on them. Also be careful When replacing the battery, be careful not to bend the electrical terminals or get oil on them. Also be careful not to get dirt in the transmitter as it could be damaged.

if the battery is not correctly replaced. There is the danger of explosion if the battery is not correctly replaced.

battery (CR2025 or equivalent). Replace only with the same type battery (CR2025 or equivalent).

to the following instructions. Dispose of used batteries according to the following instructions.

    plus and minus terminals of the battery using cellophane or equivalent tape. Insulate the plus and minus terminals of the battery using cellophane or equivalent tape.

         Never throw Never disassemble.

    the battery into fire or water. Never throw the battery into fire or water.

    or crush. Never deform or crush.

The following conditions indicate that the battery power is low:

- The KEY indicator light (green) flashes in the instrument cluster for about 30 seconds after the engine is turned off.

- The system does not operate and the operation indicator light on the transmitter does not flash when the buttons are pressed.

- The system's operational range is reduced.

Replacing the battery at an Authorized Mazda Dealer is recommended to prevent damage to the advanced key. If replacing the battery by yourself, follow the instruction below.

Replacing the advanced key battery

1. Pull out the auxiliary key.

1. Pull out the auxiliary key.

2. Gently and slowly pry open the cover using a small flathead screwdriver.

2. Gently and slowly pry open the cover using a small flathead screwdriver.

3. Remove the battery by pressing its edge.

3. Remove the battery by pressing its edge.

4. Install a new battery (CR2025 or equivalent) with the positive pole facing

4. Install a new battery (CR2025 or equivalent) with the positive pole facing down.

5. Close the cover.

6. Reinsert the auxiliary key.

Service

If you have a problem with the advanced keyless functions, consult an Authorized Mazda Dealer.

If your advanced key is lost or stolen, bring all remaining advanced keys to an Authorized Mazda Dealer as soon as possible for a replacement and to make the lost or stolen advanced key inoperative.

CAUTION:

Radio equipment like this is governed by laws in the United States.

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
