Audio information is displayed on the information display.

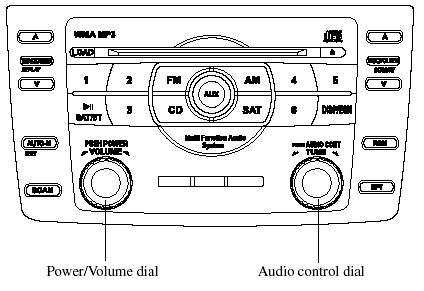

Power/Volume/Sound Controls

Power/Volume/Sound Controls

Power ON/OFF

Power ON/OFF

Switch the ignition to ACC or ON.

Press the power/volume dial to turn the audio system on.

Press the power/volume dial again to turn the audio system off.

NOTE:

To prevent the battery from being discharged, do not leave the audio system on for a long period of time when the engine is not running.

Volume adjustment

To adjust the volume, turn the power/ volume dial.

Turn the power/volume dial to the right to increase volume, to the left to decrease it.

Audio sound adjustment

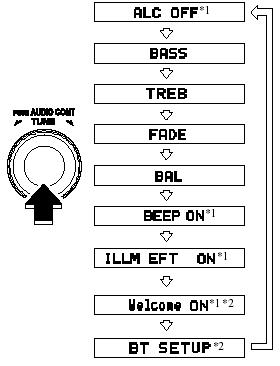

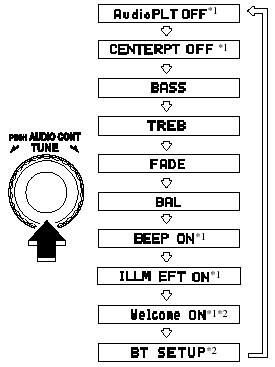

1. Press the audio control dial to select the function. The selected function will be indicated.

Standard audio-equipped model

Bose Sound System-equipped model

Bose Sound System-equipped model

*1 Depending on the mode selected, the indication changes.

*1 Depending on the mode selected, the indication changes.

*2 Depending on the model, this function, may not be available.

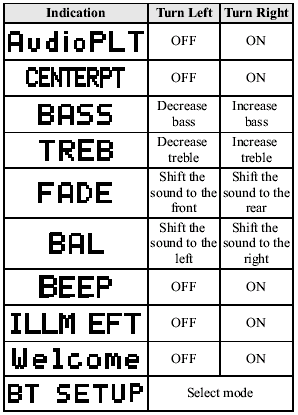

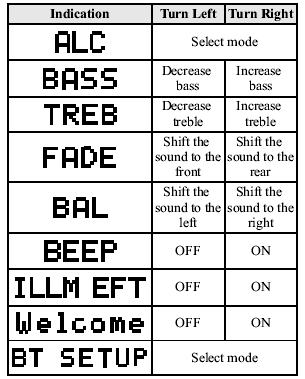

2. Turn the audio control dial to adjust the selected functions as follows:

Standard audio-equipped model

Bose® Sound System-equipped model

Bose® Sound System-equipped model

NOTE:

NOTE:

About 5 seconds after selecting any mode, the volume function will be automatically selected.

To reset bass, treble, fade, and balance, press the audio control dial for 2 seconds. The unit will beep and “CLEAR” will be displayed.

Automatic Level Control (ALC)

The automatic level control is a feature that automatically adjusts audio volume and sound quality according to the vehicle speed.

The volume increases in accordance with the increase in vehicle speed, and decreases as vehicle speed decreases.

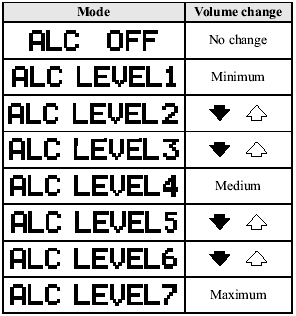

Select the desired ALC mode.

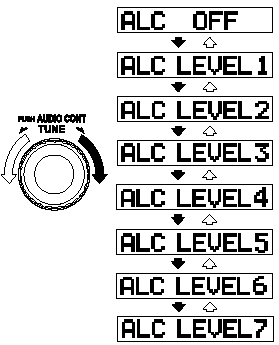

Turn the audio control dial to select ALC OFF or ALC LEVEL1―7 modes. The selected

Turn the audio control dial to select ALC OFF or ALC LEVEL1―7 modes. The selected mode will be indicated.

*AUDIOPILOT® (Bose® Sound System-equipped model)

*AUDIOPILOT® (Bose® Sound System-equipped model)

AUDIOPILOT automatically adjusts audio volume and sound quality in accordance with the level of noise entering the vehicle interior while driving.

When AUDIOPILOT® is turned on, the system automatically calculates the conditions for optimum hearing of sound which may be difficult to hear depending on exterior noise.

* AUDIOPILOT® is a registered trademark of Bose Corporation.

*Centerpoint® (Bose® Sound Systemequipped model)

Centerpoint® offers you the experience of 5.1-channel surround sound in your vehicle even with your conventional 2- channel stereo CDs.

Centerpoint® can be set on or off.

NOTE:

- Centerpoint® operates optimally with a 2- channel stereo CD. MP3 audio files can be played, however, MP3 audio files encoded with high compression may result in poor sound quality.

- Centerpoint® is available for 2-channel stereo audio except for AM radio/FM radio/ SIRIUS digital satellite radio/AUX/BT audio.

* Centerpoint® is a registered trademark of Bose Corporation.

BEEP setting

The beep-sound when operating the audio system can be set on or off.

ILLM EFT setting (Illumination setting during operation)

The audio system illumination during operation can be set on or off.

Welcome mode

The welcome mode provides the following presentation:

- Sound is heard when the ignition is turned on.

- Illumination turns on when a door is opened after unlocking the doors.

Only the sound effect can be switched on or off.

BT SETUP mode

Music and other audio such as voice data recorded on portable audio devices and mobile phones available on the market which are equipped with the Bluetooth transmission function can be listened to via wireless transmission over the vehicle's speakers. Using the BT SETUP mode, these devices can be programmed to the Bluetooth unit or changed. For details, refer to Bluetooth audio.

Operating the Radio

Radio ON

Radio ON

Press a band selector button () to turn the radio on., Band selection) to turn the radio on.

Band selection

Choose AM by pressing the AM button (and FM by pressing the FM button ().) and FM by pressing the FM button (The selected mode will be indicated. If FM stereo is being received, “ST” will).

The selected mode will be indicated. If FM stereo is being received, “ST” will be displayed.

NOTE:

If the FM broadcast signal becomes weak, reception automatically changes from STEREO to MONO for reduced noise, and the “ST” indicator will go out.

Tuning

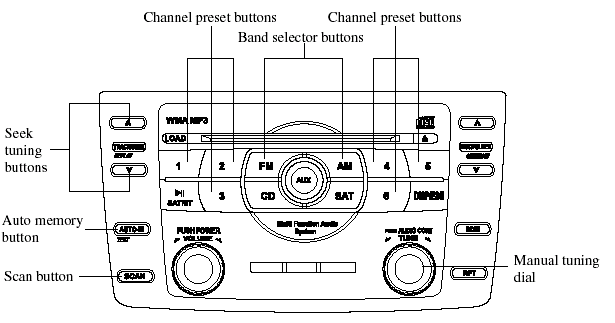

The radio has the following tuning methods: Manual, Seek, Scan, Preset channel, and Auto memory tuning. The easiest way to tune stations is to set them on preset channels.

NOTE:

If the power supply is interrupted (fuse blows or the battery is disconnected), the preset channels will be erased.

Manual tuning

Turning the manual tuning dial will change the frequency higher or lower.

Seek tuning

Pressing the seek tuning button () will cause the tuner to seek a higher, or lower frequency automatically.) will cause the tuner to seek a higher or lower frequency automatically.

NOTE:

If you continue to press and hold the button, the frequency will continue changing without stopping.

Scan tuning

Press the scan button (sample strong stations.) to automatically sample strong stations.

Scanning stops at each station for about 5 seconds. To hold a station, press the scan button (interval.) again during this interval.

Preset channel tuning

The 6 preset channels can be used to store 6 AM and 12 FM stations.

1. To set a channel first select AM, FM1, or FM2. Tune to the desired station.

2. Depress a channel preset button for about 2 seconds until a beep sound is heard. The preset channel number and station frequency will be displayed.

The station is now held in the memory.

3. Repeat this operation for the other stations and bands you want to store.

To tune one in the memory, select AM, FM1, or FM2 and then press its channel preset button. The station frequency and the channel number will be displayed.

NOTE:

If the power supply is interrupted (fuse blows or the battery is disconnected), the preset channels will be erased.

Auto memory tuning

This is especially useful when driving in an area where the local stations are not known. Additional AM/FM stations can be stored without disturbing the previously set channels.

Press and hold the auto memory button (for about 2 seconds until a beep sound is heard; the system will automatically scan) for about 2 seconds until a beep sound is heard; the system will automatically scan and temporarily store up to 6 stations with the strongest frequencies in each selected band in that area.

After scanning is completed, the station with the strongest frequency will be tuned and its frequency displayed.

Press and release the auto memory button (to recall stations from the autostored stations. One stored station will be selected) to recall stations from the autostored stations. One stored station will be selected each time; its frequency and channel number will be displayed.

NOTE:

If no stations can be tuned after scanning operations, “A” will be displayed.

Operating the Satellite Radio

Information display

Information display

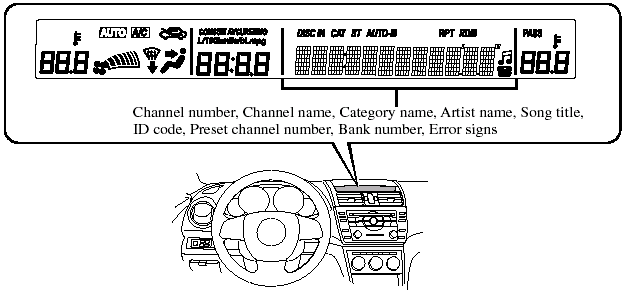

All operations of the satellite radio are displayed on the Information display.

NOTE:

NOTE:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, If not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

- Increase the separation between the equipment and tuner.

- Connect the equipment into an outlet on a circuit different from that to which the tuner is connected.

- Consult the dealer or an experienced radio/ TV technician for help.

What is satellite radio?

SIRIUS is radio the way it was meant to be: More than 100 new channels of digital quality programming delivered to listeners coast to coast via satellite. That means channels of completely commercial-free music plus more channels of news, sports, and entertainment from names like CNBC, Discovery, SCI-FI Channel, A&E, House of Blues, E!, NPR, Speed vision and ESPN.

SIRIUS is live, dynamic entertainment, completely focused on listeners. Every minute of every day of every week will be different. All commercial-free music channels are created in-house and hosted by DJs who know and love the music. Do you like Reggae? How about Classic Rock or New Rock? SIRIUS has an array of choices spanning a vast range of musical tastes including the hits of the 50's, 60's, 70's, & 80's as well as Jazz, Country, Blues, Pop, Rap, R&B, Bluegrass, Alternative, Classical, Heavy Metal, Dance and many others.

From its state-of-the-art, digital broadcasting facility in Rockefeller Center, New York City, SIRIUS will deliver the broadest, deepest mix of radio entertainment from coast to coast.

SIRIUS will bring you music and entertainment programming that is simply not available on traditional radio in any market across the country. It's radio like you've never heard before.

Sign up for SIRIUS Radio today! For more information, visit siriusradio.com.

Satellite radio can be subscribed to and received in the United States. (Except Alaska and Hawaii) and Canada.

How to subscribe to satellite radio

Once the system is installed you must first subscribe to the SIRIUS Radio service to activate the system.

The SIRIUS Radio service uses an ID code to identify your radio. This code is needed to subscribe to SIRIUS Radio, and if needed, is also used to report any problems should there be any in the future. Listeners can subscribe using any of the following methods:

- Visiting SIRIUS on the web at www.

sirius.com.

- Subscribing to SIRIUS customer care, available 24 hours a day, 7 days a week.

- Calling (888) 539-7474.

- E-mail at: customercare@siriusradio.

com.

- Writing to: SATELLITE RADIO 1221 Avenue of the Americas New York, NY 10020 Attention: Customer Care

Customers should have their SIRIUS Radio ID Electronic Serial Number (ESN#) ready.

NOTE:

Your ESN# should have been recorded at the time of installation. If not, refer to “DISPLAYING THE SIRIUS ID (ESN)” to retrieve your ESN#.

Satellite radio activation

For activation and subscription information call toll-free at 1-888-539- SIRI (7474). A SIRIUS Customer Care representative will take the necessary information and walk you through the activation process. Or you can visit SIRIUS online at WWW.siriusradio.com and click on the “Join” button.

When you call the SIRIUS Customers Care number you have two options available.

(1) The full package which allows you access to all SIRIUS content except pay- per-view.

(2) The family package which allows access to certain channels. Please see the website: www.sirius.com for details.

Please have the following information ready when attempting to activate your service:

- SIRIUS ID (ESN*).

- Valid credit card information (type, number, expiration date).

When you are ready to receive the on-air activation signals you will be instructed (for activation via phone) to turn on your tuner, have the antenna pointed skyward, and to set the channel to channel 184.

Once the signal is sent from the national studio it may take up to 10 minutes to be received by your unit.

NOTE:

On-air activation is completed after the procedure, in most cases from 10 seconds to 10 minutes.

* ESN: Electronic Serial Number

SIRIUS operation

All operations of the satellite radio are conducted by means of the audio unit.

SIRIUS radio mode selection

When the satellite button is pressed during ACC ON, it will play the last SIRIUS channel in use before the mode was switched over to another mode or the power was turned off.

When the satellite button is pressed in a mode other than the SIRIUS mode, the last channel in use will be received.

Every time the satellite button is pressed, the bank changes in the order shown

Every time the satellite button is pressed, the bank changes in the order shown below.

NOTE:

SR1, SR2 and SR3: 6 stations can be stored in each bank for convenient access to your favorite stations.

Operation in the initial state

It may take some time to start up the equipment when it is in the initial state, when there is a change in the user's subscription condition, or when the SIRIUS channel map is changed.

“UPDATING xx%” is displayed when the SIRIUS channel map is changed. If the unit is initialized or the user contract content is changed, “UPDATING” is displayed. Updating could take as long as 3 minutes depending on the geographical area. When the unit is in an initialized state, channel 184 is displayed after the display indicates “UPDATING 100%”. If the SIRIUS channel map or the user contract content is changed, the channel prior to the change is displayed after “UPDATING” is displayed. After the initialization display, it may take as long as 12 seconds to receive channel 184.

When the SIRIUS mode is switched to another mode, or when the power is turned off, the present channel which is being received is stored as the last channel.

Channel selection

Turning the manual tuning dial allows you to select the desired receiving channel.

- Turn the knob clockwise: Channel Up.

- Turn the knob counterclockwise:

Channel Down

Unsubscribed channel

When a selected station has not been subscribed to, the display indicates the following:

[CALL + 888] and [539 + SIRI] (Flashes alternately)

NOTE:

When the subscription contract is canceled, all of the channels including channel 184 appear as unsubscribed.

Invalid channel

When a selected channel is not broadcasting, [SR + (bank number) + INVALID] is displayed for 1 second, followed by [SR + (bank number) + CHANNEL], which is also displayed for 1 second. The display then returns to the previous valid channel.

NOTE:

If the last channel selected has become unavailable because of a channel update the above indication is displayed until any button is pressed.

Preset channel programming

(Programming with “channel number” display)

1. Select the desired channel to be programmed. At this point, the following is displayed:

[SR + (bank number) + (channel number)].

2. Keep pressing the channel preset button for 1.5 seconds or more.

The programming process is complete after the channel number flashes. Then, [SR + (bank number)] is displayed and a beep sound is heard at the same time.

3. [SR + (bank number) + CH + (preset number) + (channel number)] are displayed.

(Programming with “text” display (e.g.

channel name))

1. Select the desired channel to be programmed. At this point, the following is displayed:

[SR + (bank number) + (selected text (e.g. channel name))].

2. Keep pressing the channel preset button for 1.5 seconds or more.

The programming process is complete after the text (e.g. channel name) flashes. Then, [SR + (bank number)] is displayed and you will hear beep sound at the same time.

3. SR + (bank number) + CH + (preset number) + (channel number)] are displayed.

4. Three seconds later, it returns to normal display. [SR + (bank number) + (text (e.g. channel name))].

NOTE:

Six stations can be stored in each bank, SR1, SR2, and SR3 for convenient access to your favorite stations.

Preset channel call-up

Press and release the channel preset button, [SR + (bank number) + CH + (preset number) + (channel number)] appears.

When the preset button is pressed during text mode, its channel number is displayed first for 3 second and then its text is displayed.

NOTE:

In the initial setting, all channels are preset to 184.

Category change

Press the category button (UP or DOWN) and select the desired category.

- Press the category button (UP):

Category up.

- Press the category button (DOWN):

Category down.

Every time the category (UP) button is pressed for 1.5 second or less, the category is changed over in the order shown below.

At this time, the lowest (smallest-number) channel within the category indicated is received.

When the highest (or lowest) category is reached, the category is changed over in the order shown below.

Highest category→Category all→Lowest category

NOTE:

While in “CATEGORY ALL” mode, all channels covering a category can be accessed (Category off condition).

Channel selection within a category

If category is not in “ALL” and the channel number is displayed, turning the manual tuning dial moves the channel number up/down in the present category.

- Turn the manual tuning dial clockwise:

Channel Up.

- Turn the manual tuning dial counterclockwise: Channel Down.

NOTE:

The channel number needs to be indicated in the display to use manual tuning dial for this function.

Channel number, channel name, category, artist, song titles and info display

Each time the display button is pressed during SIRIUS reception, the display

Each time the display button is pressed during SIRIUS reception, the display of the text data is changed over in the order shown below.

NOTE:

- Eight characters are displayed on 1 screen.

- To display the rest of the characters of a long title, press the text button (The display scrolls the next 8 characters.).

The display scrolls the next 8 characters.

Press the text button (the last 8 characters have been displayed to return to the beginning of the title.) again after the last 8 characters have been displayed to return to the beginning of the title.

(Channel number display)

- When the display button is pressed while in info display mode, the mode changes to the channel number display mode.

(Channel name display)

- When the display button is pressed while in channel number display mode, it changes to channel name display mode.

- There are short (8 fixed characters) and long names for the channel name.

- The long name is displayed first, and 3 seconds later the short name is displayed. If there is no short name, the long name is displayed.

- To display the rest of the characters of the channel name, press the text button (TEXT). The display scrolls the next 8 characters. Press the text button (TEXT) again after the last 8 characters have been displayed to return to the beginning of the title.

- While the short name is displayed, pressing the text button switches the display to the long name.

- Three seconds after scrolling the long name, the display automatically returns to the first part of the long name. Three more seconds and the short name appears.

- If there is no channel name, “No TITLE” is displayed.

(Category name display)

- When the display button is pressed while in channel name display mode, it changes to the category name display mode.

- There are short (8 fixed characters) and long names for the category name.

- The long name is displayed first, and 3 seconds later the short name is displayed. If there is no short name, the long name is displayed.

- To display the rest of the characters of the category name, press the text button (TEXT). The display scrolls the next 8 characters. Press the text button (TEXT) again after the last 8 characters have been displayed to return to the beginning of the title.

- While the short name is displayed, pressing the text button switches the display to the long name.

- Three seconds after scrolling the long name, the display automatically returns to display the first part of the long name. Three more seconds and the short name appears.

- If there is no category name, “No CATEGORY” is displayed.

(Artist name display)

- When the display button is pressed while in category name display mode, it changes to the artist name display mode.

- To display the rest of the characters of the artist's name, press the text button (TEXT). The display scrolls the next 8 characters. Press the text button (TEXT) again after the last 8 characters have been displayed to return to the beginning of the title.

- Three seconds after scrolling the artist name, the display automatically return to display the first part of the artist's name.

- If there is no artist's name, “No ARTIST” is displayed.

(Song title display)

- When the display button is pressed while in artist name display mode, it changes to the song title display mode.

- To display the rest of the characters of the song title, press the text button (TEXT). The display scrolls the next 8 characters. Press the text button (TEXT) again after the last 8 characters have been displayed to return to the beginning of the title.

- Three more seconds after scrolling the song title, the display automatically returns to display the first part of the song title.

- If there is no song title, “No SONG” is displayed.

(INFO (such as composer's name) display)

- When the display button is pressed while in song title display mode, it changes to the INFO display mode.

- To display the rest of the characters of the composer's name, press the text button (TEXT). The display scrolls the next 8 characters. Press the text button (TEXT) again after the last 8 characters have been displayed to return to the beginning of the title.

- Three seconds after scrolling the text, the display automatically returns to display the first part of the text.

- If there is no composer name, “No INFO” is displayed.

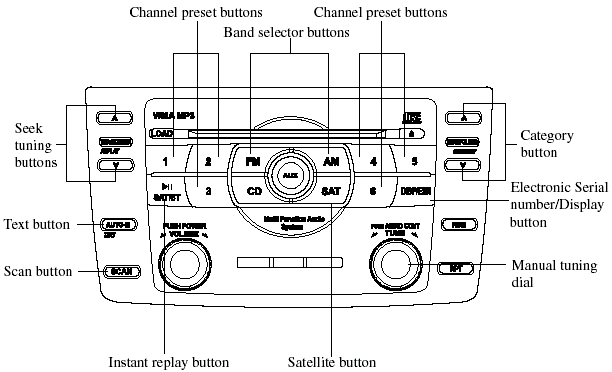

Instant replay

This function allows you to rewind and replay the program that you were previously or are currently listening to.

Press the instant replay button (When the seek tuning button () is).

When the seek tuning button (pressed (about 1.5 seconds), playback starts from the beginning of the current program.) is pressed (about 1.5 seconds), playback starts from the beginning of the current program.

When the seek tuning button (pressed twice, playback starts from the beginning of the previous program.) is pressed twice, playback starts from the beginning of the previous program.

When the seek tuning button (pressed for about 1.5 seconds or longer, the program is reversed while the button) is pressed for about 1.5 seconds or longer, the program is reversed while the button is being pressed.

When the seek tuning button (pressed (about 1.5 seconds), playback starts from the beginning of the next program.) is pressed (about 1.5 seconds), playback starts from the beginning of the next program. When the seek tuning button ((about 1.5 seconds) while the last program is being played, the instant replay mode) is pressed (about 1.5 seconds) while the last program is being played, the instant replay mode is cancelled.

When the seek tuning button (pressed for 1.5 seconds or longer, the program is fast-forwarded while the button) is pressed for 1.5 seconds or longer, the program is fast-forwarded while the button is being pressed. When pressing and holding the button until the end of the program, the instant replay mode is cancelled.

When the instant replay button is pressed again, playback is paused, or playback starts if it has been paused.

Instant replay (PAUSE)

If the instant replay button is pressed while the instant replay mode is off, instant replay mode is turned on in a paused condition (PAUSE). Press the instant replay button again to resume playback from the point at which it was paused.

NOTE:

- If the channel is changed, the instant replay buffer data is deleted.

- After turning on the power and switching to SIRIUS digital satellite radio mode, the instant replay mode is not available for several seconds after changing channels.

(How to cancel the instant replay)

- Turn off the ACC or POWER.

- Press any one of the following buttons:

FM/AM, CD, AUX, SAT, CATEGORY, or a channel preset button.

- Short-press the seek tuning button (to the last track while tracking up.) to the last track while tracking up.

- To fast-forward to the end of the track long-press the seek tuning button (- Hold the scan button, then press channel preset button 4, 5, or 6.).

- Hold the scan button, then press channel preset button 4, 5, or 6.

- Turn the manual tuning dial.

- Press the up/down switch on the audio control switch.

- Insert or play a CD.

Displaying the SIRIUS ID (ESN)

When the ESN button is pressed for 1.5 seconds or longer, a 12-digit Electronic Serial Number (ESN) for the SIRIUS tuner is displayed.

(How to clear the message)

- Turn off the ACC.

- Turn off the POWER.

- Press any one of the following buttons:

FM/AM, CD, AUX, SAT, ESN/DISP, CAT, SCAN, Instant replay, seek tuning button (- Turn the manual tuning dial.), or a channel preset button.

- Turn the manual tuning dial.

- Insert or play a CD.

(If the SIRIUS ID (ESN) for the tuner does not display)

If “ESN + FAIL” is displayed after pressing the ESN button for 1.5 seconds or longer, contact an Authorized Mazda Dealer.

Initialization of ID code

If the registered ID code is forgotten, return the ID code to the default [0000] by performing the following steps:

Setting condition: SAT mode

(Master code input preparation)

1. Hold the scan button, then press channel preset button 4, hold both buttons together for 1.5 seconds.

2. “ENTER PIN” appears for 3 seconds which indicates that it is in code input mode.

3. “SR1 - - - -” appears, which indicates that it is ready for code input.

(Master code input)

4. Input the master code using the channel preset buttons 1-4.

Press the scan button inputting the code.

(The master code is already set at the time of factory shipment.)

(Master code input determination)

5. Determine the master code which has been input by pressing the scan button.

6. “PIN CLEARED” appears which indicates that the master code input has been completed.

7. The ID code is set to the default [0000] and the initialization process is completed.

NOTE:

Master code:

The Master Code is used to initialize or reinitialize the ID code in the event that the code is not set to [0000] and/or the personalized ID code is not known. The initialization process resets the ID code to [0000]. The master code can potentially defeat the intent of the security of the parental lock if it is located by persons not authorized by the owner to access certain channels.

SIRIUS Satellite Radio Master Code: [0913]

(How to clear the message)

- Press any of the following FM/AM, SAT, CD, AUX, LOAD, EJECT, POWER buttons.

- Turn the ACC off or insert a CD.

NOTE:

- When a numeric value other than the master code is input and the scan button is pressed, “SR1 Err” is displayed and then it returns to the “SR1 - - - -” display again.

- If an ID code is not input for 10 seconds, “Err” is displayed and it returns to the former display.

- Channel preset buttons 1, 2, 3, 4 and the scan button are used for inputting the ID code. Buttons 5 and 6 cannot be used.

Change of ID code

Setting condition: SAT mode.

When changing the ID code, the new ID code is input after the previous one is input first.

(Registered ID code input)

1. Hold the scan button, then press channel preset button 5, hold both buttons together for 1.5 seconds.

2. “ENTER PIN” appears for 3 seconds which indicates that it is in code input mode.

3. “SR1 - - - -” appears, which indicates that it is ready for code input.

4. Input the registered ID code using channel preset buttons 1-4. Then press the scan button.

Example: When the registered ID code is “2323”, input “2323”. At this time “SR1 2323” is displayed.

Press 1 for the first digit, 2 for the second, 3 for the third, and 4 for the last digit. For example, if your number is 2323, press 1 three times, 2 four times, 3 three, and 4 four times. If the display goes off while inputting, begin from Step 1.

NOTE:

The registered ID code is the default [0000] at the time of factory shipment. If [0000] results in “Err” on the display, go to the “INITIALIZATION OF ID CODE” section to reset to [0000].

(Verification with the registered ID code)

5. Determine the input code by pressing the scan button.

6. If it does not match with the previously registered code, “SR1 Err” is displayed and then it returns to “SR1 - - - -”.

7. If it matches with the previously registered code, “ENTER PIN” appears again and it switches to code input mode.

8. “SR1 - - - -” appears, and it is ready for input of the new ID code.

(New ID code input)

9. Input the new ID code using channel preset buttons 1-4.

Example: If “1234” is input as the new code, “SR1 1234” is displayed.

Press the scan button after the code is input.

(New ID code input determination)

10. Determine the new ID code which has been input by pressing the scan button.

11. “PIN CHANGED” appears for 3 seconds which indicates that the new ID code input has been completed.

12. It returns to the former display.

(How to clear the message)

- Press any of the following FM/AM, SAT, CD, AUX, LOAD, EJECT, POWER buttons.

- Turn the ACC off or insert a CD.

NOTE:

- If an ID code is not input for 10 seconds, “Err” is displayed and it returns to the former display.

- Channel preset buttons 1, 2, 3, 4 and the scan button are used for input of the ID code. Buttons 5 and 6 cannot be used.

Individual channel locking

If a channel is locked, the channel is muted.

NOTE:

If the registered ID code is forgotten, return the ID code to the default [0000]. (See “INTIALIZATION OF ID CODE” section)

(Locking a channel)

1. Select a channel to be locked by turning the manual tuning dial.

Example: Select channel 100

(Registered ID code input preparation)

2. Hold the scan button, then press channel preset button 6, hold both buttons together for 1.5 seconds.

3. “ENTER PIN” appears for 3 seconds which indicates that it is in code input mode.

4. “SR1 - - - -” appears which indicates that it is ready for code input.

(Registered ID code input)

5. Input the registered ID code using channel preset buttons 1-4. Example: If the registered ID code is “2323”, input “2323”. At this time “SR1 2323” is displayed. Press the scan button after the code is input.

(Registered ID code input determination)

6. Determine the code which has been input by pressing the scan button.

7. If it does not match the registered code, “SR1 Err” is displayed and then it returns to “SR1 - - - -”.

8. If it matches the registered code, “SR1 LOCK” appears for 3 seconds which indicates that the code input has been completed.

9. “SR1 LOCK 100” appears which indicates that the parental lock is activated. At this time, mute is on and no sound is heard.

(How to clear the message)

- Press any of the following FM/AM, SAT, CD, AUX, LOAD, EJECT, POWER buttons.

- Turn the ACC off or insert a CD.

NOTE:

- If an ID code is not input for 10 seconds, “Err” is displayed and it returns to the former display.

- Channel preset buttons 1, 2, 3, 4 and the scan button are used for input of the ID code. Buttons 5 and 6 cannot be used.

Lock cancellation

Setting condition: SAT mode

(Releasing a locked channel)

1. Select a channel to be released by turning the manual tuning dial.

Example: Select the locked channel (i.e. 100). At this time, “SR1 LOCK 100” is displayed.

(Registered ID code input preparation)

2. Hold the scan button, then press channel preset button 6, hold both buttons together for 1.5 seconds.

3. “ENTER PIN” appears for 3 seconds which indicates that it is in code input mode.

4. “SR1 - - - -” appears, which indicates that it is ready for code input.

(Registered ID code input)

5. Input the registered ID code using channel preset buttons 1-4. Example:

When the registered ID code is “2323”, input “2323”. At this time “SR1 2323” is displayed. Press the scan button after the code is input.

NOTE:

If “Err” is displayed, go to the “INITIALIZATION OF ID CODE” section to reset the ID code to [0000].

(Registered ID code input determination)

6. Determine the input code by pressing the scan button.

7. If it does not match the registered code, “SR1 Err” is displayed and then it returns to “SR1 - - - -”.

8. If it matches the registered code, “SR1 UNLOCK” appears for 3 seconds which indicates that the code input has been completed.

9. “SR1 100” appears which indicates that the parental lock is off. At this time, sound is heard.

(How to clear the message)

- Press any of the following FM/AM, SAT, CD, AUX, LOAD, EJECT, POWER buttons.

- Turn the ACC off or insert a CD.

NOTE:

- If an ID code is not input for 10 seconds, “Err” is displayed and it returns to the former display.

- Channel preset buttons 1, 2, 3, 4 and the scan button are used for input of the ID code. Buttons 5 and 6 cannot be used.

Error signs

(1) Depending on the surrounding conditions (such as large trees, buildings, or tunnels) and special weather conditions, the reception of SIRIUS radio waves may be decreased or temporarily interrupted.

“ACQUIRING SIGNAL” may appear.

(2) In case of an antenna malfunction, “ANTENNA FAIL” is displayed.

Check the satellite radio antenna, antenna cable and DLP antenna connector.

NOTE:

If a broken DLP* unit is replaced with a new unit, cancel the license for the broken unit and make sure to carry out new registration for the replaced unit. If the license for the broken unit is not canceled, you will be charged a reception fee for both units.

* DLP: Down Link Processor (SATELLITE RADIO Module)

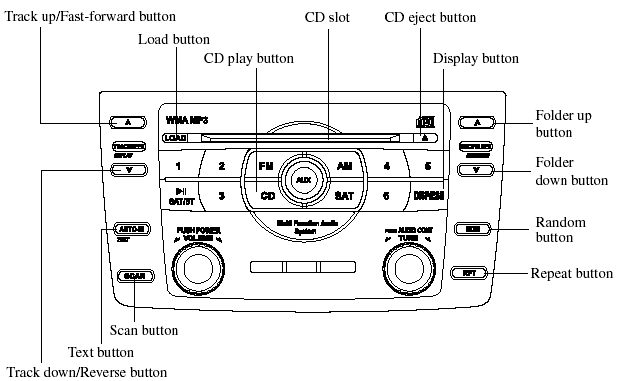

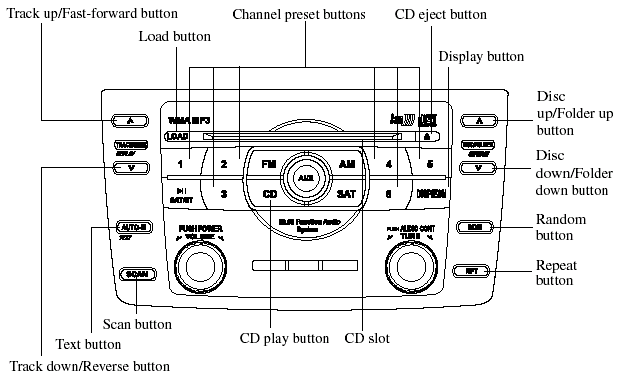

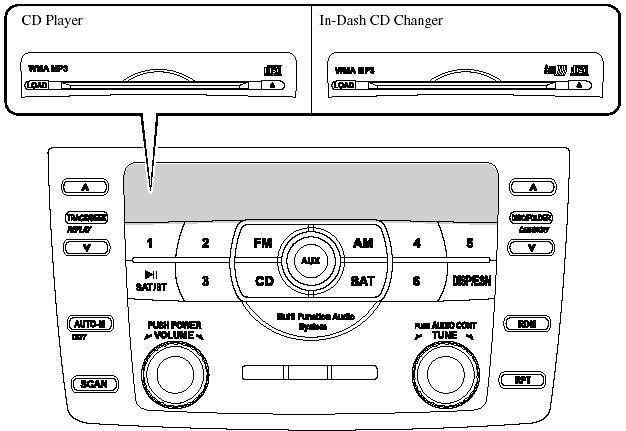

Operating the Compact Disc (CD) Player

NOTE:

NOTE:

If a disc has both music data (CD-DA) and MP3/WMA files, playback of the two or three file types differs depending on how the disc was recorded.

Inserting the CD

Insert the CD into the slot, label-side up.

The auto-loading mechanism will set the CD and begin play.

NOTE:

There will be a short lapse before play begins while the player reads the digital signals on the CD.

Ejecting the CD

Press the CD eject button (eject the CD.) to eject the CD.

Playback

Press the CD play button (play when a CD is in the unit.) to start play when a CD is in the unit.

If a CD is not in the unit when the CD play button (is pressed, “NO DISC” will flash on and off.) is pressed, “NO DISC” will flash on and off.

NOTE:

When the load button (the CD will load and play even if the CD eject button ()) is pressed, the CD will load and play even if the CD eject button (had been previously pressed.) had been previously pressed.

Fast-forward/Reverse

Press and hold the fast-forward button (to advance through a track at high speed.) to advance through a track at high speed.

Press and hold the reverse button (to reverse through a track at high speed.) to reverse through a track at high speed.

Track search

Press the track up button (to skip forward to the beginning of the next track.) once to skip forward to the beginning of the next track.

Press the track down button (to skip back to the beginning of the current track.) once to skip back to the beginning of the current track.

Folder search (during MP3/WMA CD playback)

To change to the previous folder, press the folder down button (or press the folder up button () to), or press the folder up button (advance to the next folder.) to advance to the next folder.

Music scan

This feature helps to find a program by playing about the first 10 seconds of each track.

Press the scan button (playback to start the scan play operation (the track number will flash).) during playback to start the scan play operation (the track number will flash).

Press the scan button (cancel scan playback.) again to cancel scan playback.

NOTE:

If the unit is left in scan, normal playback will resume where scan was selected.

Repeat playback

During music CD playback

1. Press the repeat button (playback to play the current track repeatedly. “RPT” is displayed.) during playback to play the current track repeatedly. “RPT” is displayed.

2. Press the button again to cancel the repeat playback.

During MP3/WMA CD playback

(Track repeat)

1. Press the repeat button (playback to play the current track repeatedly. “TRACK RPT” is displayed.) during playback to play the current track repeatedly. “TRACK RPT” is displayed.

2. To cancel the repeat playback, press the button again after 3 seconds.

(Folder repeat)

1. Press the repeat button (playback, and then press the button again within 3 seconds to play the tracks in) during playback, and then press the button again within 3 seconds to play the tracks in the current folder repeatedly.

“FOLDER RPT” is displayed.

2. Press the button again to cancel the repeat playback.

Random playback

Tracks are randomly selected and played.

During music CD playback

1. Press the random button (playback to play the tracks on the CD randomly. “RDM” is displayed.) during playback to play the tracks on the CD randomly. “RDM” is displayed.

2. Press the button again to cancel the random playback.

During MP3/WMA CD playback

(Folder random)

1. Press the random button (playback to play the tracks in the folder randomly. “FOLDER RDM” is displayed.) during playback to play the tracks in the folder randomly. “FOLDER RDM” is displayed.

2. To cancel the random playback, press the button again after 3 seconds.

(CD random)

1. Press the random button (playback, and then press the button again within 3 seconds to play the tracks on) during playback, and then press the button again within 3 seconds to play the tracks on the CD randomly.

“DISC RDM” is displayed.

2. Press the button again to cancel the random playback.

Switching the display

For files with a file name or other name that have been input, the display changes in the order of the file names or other names each time the display button (is pressed during playback.) is pressed during playback.

Music CD

File name.

File name.

Album name.

Artist name.

Track number/Elapsed time.

MP3/WMA CD

File number/Elapsed time.

File number/Elapsed time.

Folder number/Track number.

File name.

Folder name.

Album name (ID3 Tag).

Song name (ID3 Tag).

Artist name (ID3 Tag).

NOTE:

(MP3/WMA CD).

This unit can only read English (including numerals) one-byte characters. Depending on the CD writing software used, proper display may not be possible.

Display scroll

Only 8 characters (File name) or 12 characters (Except file name) can be displayed at one time. To display the rest of the characters of a long title, press the text button (next 12 characters. Press the text button ()). The display scrolls the next 12 characters. Press the text button (again after the last 12 characters have been displayed to return to the beginning) again after the last 12 characters have been displayed to return to the beginning of the title.

NOTE:

The displayable number of characters is limited. If the number of characters, including the file extension (.mp3/.wma), exceeds 32 characters, it may not be fully displayed.

Message display

If “CHECK CD” is displayed, it means that there is some CD malfunction. Check the CD for damage, dirt, or smudges, and then properly reinsert. If the message appears again, take the unit to an Authorized Mazda Dealer for service.

Operating the In-Dash CD Changer

NOTE:

NOTE:

If a disc has both music data (CD-DA) and MP3/WMA files, playback of the two or three file types differs depending on how the disc was recorded.

Inserting the CD

The CD must be label-side up when inserting. The auto-loading mechanism will set the CD and begin play.

The disc number and the track number will be displayed.

NOTE:

There will be a short lapse before play begins while the player reads the digital signals on the CD.

Normal insertion

1. Press the load button (2. When “IN” is displayed, insert the CD.).

2. When “IN” is displayed, insert the CD.

Inserting CDs into desired tray number

1. Press and hold the load button (for about 2 seconds until a beep sound is heard.) for about 2 seconds until a beep sound is heard.

2. Press the channel preset button for the desired tray number while “WAIT” is displayed.

3. When “IN” is displayed, insert the CD.

NOTE:

The CD cannot be inserted to the desired tray number if the number is already occupied.

Multiple insertion

1. Press and hold the load button (for about 2 seconds until a beep sound is heard.) for about 2 seconds until a beep sound is heard.

2. When “IN” is displayed, insert the CD.

3. When “IN” is displayed again, insert the next CD.

NOTE:

The first-inserted CD will be played automatically when:

- No other CD is inserted within 15 seconds after “IN” is displayed.

- The CD trays are full.

Ejecting the CD

Normal ejection

1. Press the CD eject button (The disc number and “DISC OUT” will be displayed.). The disc number and “DISC OUT” will be displayed.

2. Pull out the CD.

NOTE:

When the CD is ejected during play, the next CD will be played automatically.

Ejecting CDs from desired tray number

1. Press and hold the CD eject button (for about 2 seconds until a beep sound is heard.) for about 2 seconds until a beep sound is heard.

The “DISC OUT” display flashes.

2. Press the channel preset button for the desired CD number for less than 5 seconds after the beep sound is heard.

3. Pull out the CD.

Multiple ejection

1. Press and hold the CD eject button (for about 2 seconds until a beep sound is heard.) for about 2 seconds until a beep sound is heard.

The “DISC OUT” display flashes.

2. Press the CD eject button (again for less than 5 seconds after the beep sound is heard.) again for less than 5 seconds after the beep sound is heard.

NOTE:

If the button is not pressed and about 5 seconds have elapsed while “DISC OUT” is flashing, CDs are automatically ejected.

3. Pull out the CD, then the next CD will be ejected.

NOTE:

- CDs will be ejected starting with the one with the lowest number.

- All CDs in the tray will be ejected continuously.

- CDs can be ejected when the ignition is switched off. Press and hold the CD eject button (seconds and all CDs will eject.) for about 2 seconds and all CDs will eject.

Playback

Press the CD play button (play when a CD is in the unit.) to start play when a CD is in the unit.

If a CD is not in the unit when the CD play button (is pressed, “NO DISC” will flash on and off.) is pressed, “NO DISC” will flash on and off.

Fast-forward/Reverse

Press and hold the fast-forward button (to advance through a track at high speed.) to advance through a track at high speed.

Press and hold the reverse button (to reverse through a track at high speed.) to reverse through a track at high speed.

Track search

Press the track up button (to skip forward to the beginning of the next track.) once to skip forward to the beginning of the next track.

Press the track down button (to skip back to the beginning of the current track.) once to skip back to the beginning of the current track.

Disc search

During music CD playback

To change the disc, press the DISC button (or ) during playback. or During MP3/WMA CD playback) during playback.

During MP3/WMA CD playback

To change the disc, press the DISC button (or ) for 1.5 seconds or more during or playback.) for 1.5 seconds or more during playback.

Folder search (during MP3/WMA CD playback)

To change to the previous folder, press the folder down button (for less than 1.5 seconds, or press the folder up button ()) for less than 1.5 seconds, or press the folder up button (for less than 1.5 seconds to advance to the next folder.) for less than 1.5 seconds to advance to the next folder.

Music scan

This feature helps to find a program by playing about the first 10 seconds of each track.

Press the scan button (playback to start the scan play operation (the track number will flash).) during playback to start the scan play operation (the track number will flash).

Press the scan button (cancel scan playback.) again to cancel scan playback.

NOTE:

If the unit is left in scan, normal playback will resume where scan was selected.

Repeat playback

During music CD playback

1. Press the repeat button (playback to play the current track repeatedly. “RPT” is displayed.) during playback to play the current track repeatedly. “RPT” is displayed.

2. Press the button again to cancel the repeat playback.

During MP3/WMA CD playback

(Track repeat)

1. Press the repeat button (playback to play the current track repeatedly. “TRACK RPT” is displayed.) during playback to play the current track repeatedly. “TRACK RPT” is displayed.

2. To cancel the repeat playback, press the button again after 3 seconds.

(Folder repeat)

1. Press the repeat button (playback, and then press the button again within 3 seconds to play the tracks in) during playback, and then press the button again within 3 seconds to play the tracks in the current folder repeatedly.

“FOLDER RPT” is displayed.

2. Press the button again to cancel the repeat playback.

Random playback

Tracks are randomly selected and played.

During music CD playback

1. Press the random button (playback to play the tracks in the CD randomly. “RDM” is displayed.) during playback to play the tracks in the CD randomly. “RDM” is displayed.

2. Press the button again to cancel the random playback.

During MP3/WMA CD playback

(Folder random)

1. Press the random button (playback to play the tracks in the folder randomly. “FOLDER RDM” is displayed.) during playback to play the tracks in the folder randomly. “FOLDER RDM” is displayed.

2. To cancel the random playback, press the button again after 3 seconds.

(CD random)

1. Press the random button (playback, and then press the button again within 3 seconds to play the tracks on) during playback, and then press the button again within 3 seconds to play the tracks on the CD randomly.

“DISC RDM” is displayed.

2. Press the button again to cancel the random playback.

Switching the display

For files with a file name or other name that have been input, the display changes in the order of the file names or other names each time the display button (is pressed during playback.) is pressed during playback.

Music CD

Disc number/Track number/Elapsed time.

Disc number/Track number/Elapsed time.

Disc tray number.

File name.

Album name.

Artist name.

MP3/WMA CD

Disc number/File number/Elapsed time.

Disc number/File number/Elapsed time.

Disc tray number.

Disc number/Folder number/Track number.

File name.

Folder name.

Album name (ID3 Tag).

Song name (ID3 Tag).

Artist name (ID3 Tag).

NOTE:

(MP3/WMA CD).

This unit can only read English (including numerals) one-byte characters. Depending on the CD writing software used, proper display may not be possible.

Display scroll

Only 8 characters (File name) or 12 characters (Except file name) can be displayed at one time. To display the rest of the characters of a long title, press the text button (next 12 characters. Press the text button ()). The display scrolls the next 12 characters. Press the text button (again after the last 12 characters have been displayed to return to the beginning) again after the last 12 characters have been displayed to return to the beginning of the title.

NOTE:

The displayable number of characters is limited. If the number of characters, including the file extension (.mp3/.wma), exceeds 32 characters, it may not be fully displayed.

Message display

If “CHECK CD” is displayed, it means that there is some CD malfunction. Check the CD for damage, dirt, or smudges, and then properly reinsert. If the message appears again, take the unit to an Authorized Mazda Dealer for service.

Operating the Auxiliary jack

You can connect portable audio units or similar products on the market to the auxiliary jack to listen to music or audio over the vehicle's speakers, refer to Auxiliary Input.

Error Indications

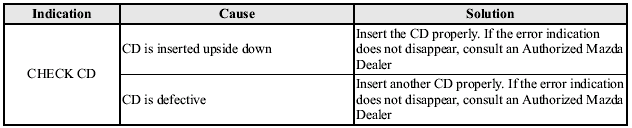

If you see an error indication on the display, find the cause in the chart. If you cannot clear the error indication, take the vehicle to an Authorized Mazda Dealer.

Audio Control Switch Operation
