Nissan Maxima: Compact disc (CD) changer operation - Monitor, climate, audio, phone and voice recognition systems - Nissan Maxima Owners ManualNissan Maxima: Compact disc (CD) changer operation

Place the ignition switch in the ACC or ON position and press the LOAD button, then press one of the CD insert (1 6) slots. Insert the compact disc into the slot with the label side facing up. The compact disc will be guided automatically into the slot and start playing.

If the radio is already operating, it will automatically turn off and the compact disc will play.

If the system has been turned off while a compact disc was playing, pressing the VOL/ON·OFF control knob will start the compact disc.

LOAD button:

To insert a CD in the CD changer, press the LOAD button for less than 1.5 seconds. Select the loading slot by pressing the CD insert select button (1 6), then insert the CD.

To insert 6 CDs to the CD changer, press the LOAD button for more than 1.5 seconds.

The slot numbers (1 6) will illuminate on the display when CDs are loaded into the changer.

DISC button:

When the DISC button is pressed with the system off and a compact disc loaded, the system will turn on and the compact disc will start to play.

When the DISC button is pressed with a compact disc loaded with the radio playing, the radio will automatically be turned off and the compact disc will start to play.

When the SEEK/CAT  button is pressedSEEK/CAT and TRACK buttons:

When the SEEK/CAT while a compact disc is playing, the track being played returns to its beginning. button is pressed while a compact disc is playing, the track being played returns to its beginning. Press several times to skip back through tracks. The compact disc will go back the number of times the button is pressed.

When the TRACK while the compact disc is playing, the next track will start to play from its beginning.button is pressed while the compact disc is playing, the next track will start to play from its beginning. Press several times to skip through tracks. The compact disc will advance the number of times the button is pressed. (When the last track on the compact disc is skipped through, the first track will be played.)

Forward) buttons: SEEK/CAT and TRACK (Rewind·Fast Forward) buttons:

Press and hold the SEEK/CAT button or the TRACK (fast forward) button(rewind) button or the TRACK while a compact disc is playing, the compact disc will play while rewinding or fast(fast forward) button while a compact disc is playing, the compact disc will play while rewinding or fast forwarding. When the button is released, the compact disc will return to normal play speed.

TUNE/FOLDER knob

While playing an MP3/WMA CD, turn the TUNE/FOLDER knob right or left to scan forward or backward through available folders.

CD select buttons:

To play another CD that has been loaded, press a CD select button (1 6).

RPT/RDM button:

When the RPT/RDM button is pressed while the compact disc is playing, the play pattern can be changed as follows:

CD:

All Disc Repeat > 1 Disc Repeat > 1 Track Repeat!All Disc Random!1 Disc Random! All Disc Repeat

MP3/WMA CD:

All Disc Repeat > 1 Disc Repeat > 1 Folder Repeat!1 Track Repeat!All Disc Random! 1 Disc Random > 1 Folder Random > All Disc Repeat All Disc Repeat: All discs loaded will be repeated.

1 Disc Repeat: The disc that is currently playing will be repeated.

1 Track Repeat: The track that is currently playing will be repeated.

1 Folder Repeat: The folder that is currently being accessed will be repeated.

All Disc Random: All discs loaded will be played in a mixed order.

1 Disc Random: The tracks on the disc that is currently playing will be played in a mixed order.

1 Folder Random: The tracks in the folder that is currently being accessed will be played in a mixed order.

SCAN button:

While listening to a CD, press the SCAN button to preview the first 10 seconds of each track on the CD playing. Pressing the SCAN button again during this 10 second period stops the scan and the CD remains on that track.

Current/Selected disc:CD EJECT:

Current/Selected disc:

- Press the slot number (1 6) for the desired disc. The compact disc will be ejected. If nobutton, then press the slot number (1 6) for the desired disc. The compact disc will be ejected. If no slot number (1 6) is pressed, the current loaded disc will be ejected. If the ejected disc is not removed within 15 seconds, the disc will reload.

All discs:

- Press and hold the than 1.5 seconds. The compact discs will be ejected one by one. If a disc is notbutton for more than 1.5 seconds. The compact discs will be ejected one by one. If a disc is not removed within 15 seconds or the is pressed again during the eject sequence, the entire disc eject sequence willbutton is pressed again during the eject sequence, the entire disc eject sequence will be canceled.

When this button is pressed while a compact disc is being played, the compact disc will eject and the last source will be played.

CD IN indicator:

The slot numbers (1 6) will illuminate if CDs have been loaded into the changer in CD mode only.

AUX IN jack

The AUX IN jack is located on the CD changer.

The AUX IN audio input jack accepts any standard analog audio input, such as from a portable cassette tape player, MP3 player or a laptop computer.

Press the AUX button to play a compatible device when it is plugged into the AUX IN jack.

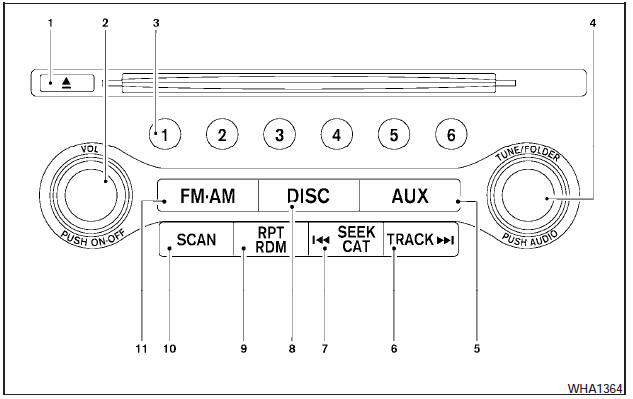

1. CD eject button.

1. 2. VOL/ON·OFF control knob.CD eject button.

2. VOL/ON·OFF control knob.

3. Station select (1 - 6) buttons.

4. TUNE/FOLDER and AUDIO control knob (Bass, Treble, Fade and Balance).

5. AUX button*.

6. TRACK button.

7. SEEK/CAT button.

8. DISC button.

9. RPT/RDM button.

10. SCAN button.

11. FM·AM button.

*No satellite radio reception is available when the AUX button is pressed to access satellite radio stations unless optional satellite receiver and antenna are installed and an XMT satellite radio service subscription is active. Satellite radio is not available in Alaska, Hawaii and Guam.
