Nissan Maxima: Compressed Video Files (models with Navigation System) - Monitor, climate, audio, phone and voice recognition systems - Nissan Maxima Owners ManualNissan Maxima: Compressed Video Files (models with Navigation System)

Explanation of terms:

- DivX DivX refers to the DivXT codec owned by Div, Inc. used for a lossy compression of video based on MPEG-4.

- AVI AVI stands for Audio Video Interleave.

It is standard file format originated by Microsoft Corporation. A .divx encoded file can be saved into the .avi file format for playback on this system if it meets the requirements stated in the table in this section. However, all .avi files are not playable on this system since different encodings can be used other than the DivXT codec.

- ASF ASF stands for Advanced Systems Format. It is file format owned by Microsoft Corporation. Note: Only .asf files that meet the requirements stated in the table in this section can be played.

- Bit rate Bit rate denotes the number of bits per second used by a digital video files.

The size and quality of a compressed digital audio file is determined by the bit rate used when encoding the file.

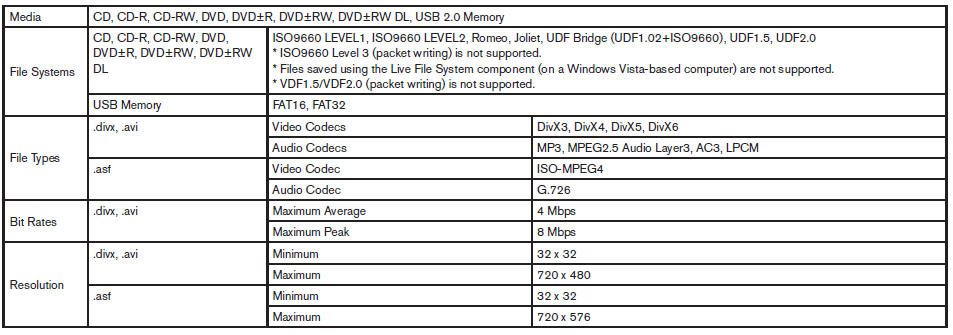

Supporting Video Playback: Requirements for Supporting Video Playback:

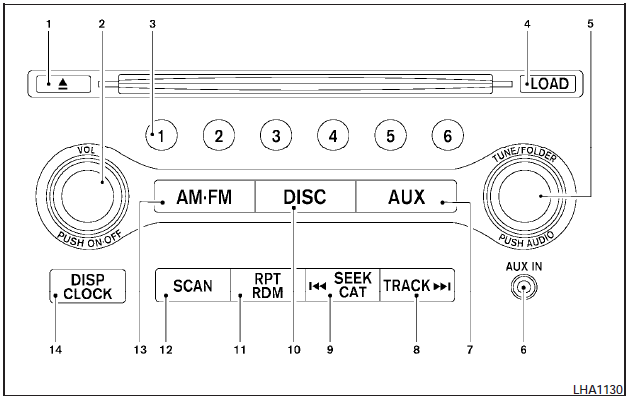

1. CD eject button.

1. 2. VOL/ON·OFF control knob.CD eject button.

2. VOL/ON·OFF control knob.

3. Station and CD select (1 - 6) buttons.

4. LOAD CD button.

5. TUNE/FOLDER and AUDIO control knob (Bass, Treble, Fade, Balance, SSV (if so equipped), and Beep).

6. AUX IN jack.

7. AUX button.

8. TRACK button.

9. SEEK/CAT button.

10. DISC button.

11. RPT/RDM button.

12. SCAN button.

13. AM·FM button.

14. DISP/CLOCK button.

    CD, DVD or USB with Compressed Audio Files (models with Navigation System)
    The file types supported by this system are MP3, WMA, AAC/M4A and ATRAC3. Explanation of terms: - MP3 MP3 is short for Moving Pictures Experts Group Audio Layer 3. MP3 is the most well known compr ...

    FM/AM radio with compact disc (CD) changer (if so equipped)
    For all operation precautions, see "Audio operation precautions" in this section. VOL/ON·OFF control: Place the ignition switch in the ACC or ON position and push the VOL/ON·OFF control ...
