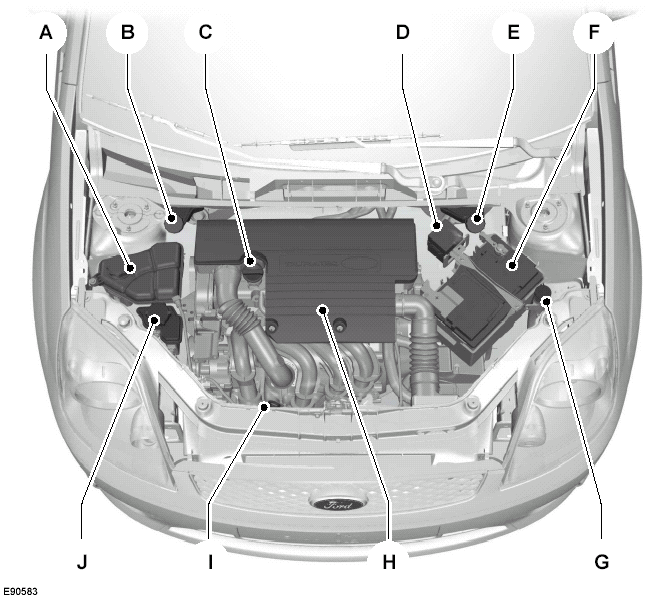

Ford Fusion: Engine compartment overview - 1.25L Duratec-16V (Sigma)/1.4L Duratec-16V
(Sigma)/1.6L Duratec-16V (Sigma)
A. Engine coolant reservoir*: See Engine coolant check.
B. Brake and clutch fluid reservoir (right-hand drive)*: See Brake and clutch fluid check.
C. Engine oil filler cap*: See Engine oil check.
D. Engine compartment fuse box. See Fuses.
E. Brake and clutch fluid reservoir (right-hand drive)*: See Brake and clutch fluid check.
F. Battery: No maintenance necessary.
G. Windscreen and rear window washer fluid reservoir: See Washer fluid check.
H. Air cleaner: No maintenance necessary.
I. Engine oil dipstick*: See Engine oil check.
J. Power steering fluid reservoir: See Power steering fluid check.
* The filler caps and the engine oil dipstick are coloured for easy identification.
Opening and closing the bonnet
Opening the bonnet
1. Pull the lever.
2. Raise the bonnet slightly and pull thecatch towards you.
3. Open the bonnet and support it withthe strut.
Closing the bonnet
Note: Make sure that the ...
Engine compartment overview - 1.4L Duratorq-TDCi (DV) Diesel
A. Engine coolant reservoir*: See Engine coolant check.
B. Brake and clutch fluid reservoir (right-hand drive)*: See Brake and clutch
fluid check.
C. Engine oil filler cap*: See Engine oil check ...
