Hyundai Sonata: Engine oil

Hyundai Sonata: Engine oil

• Checking the engine oil level
• Changing the engine oil and filter

Checking the engine oil level

1. Be sure the vehicle is on level ground.
2. Start the engine and allow it to reach normal operating temperature.
3. Turn the engine off and wait for a few minutes (about 5 minutes) for the oil to return to the oil pan.

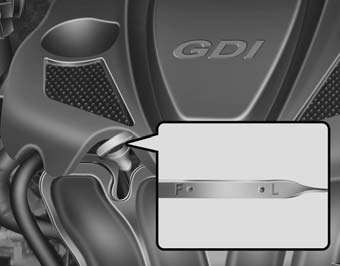

4. Pull the dipstick out, wipe it clean, and re-insert it fully.
5. Pull the dipstick out again and check the level. The level should be between F and L.

CAUTION

Do not overfill with engine oil. Engine damage may result.

If it is near or at L, add enough oil to bring the level to F. Do not overfill.

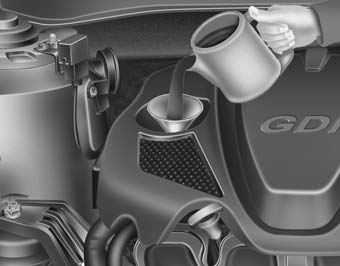

Use a funnel to help prevent oil from being spilled on engine components.

Use only the specified engine oil. (Refer to “Recommended lubricants and capacities” in section 8.)

Changing the engine oil and filter
