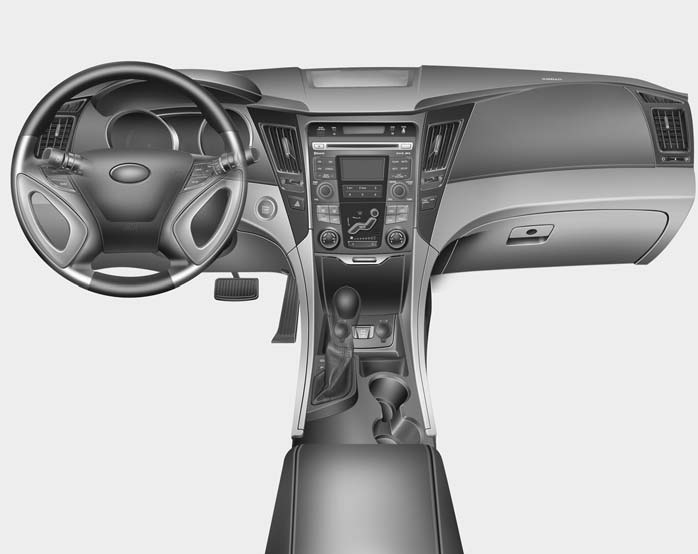

Hyundai Sonata: Instrument panel overview - Your vehicle at a glance - Hyundai Sonata Owners ManualHyundai Sonata: Instrument panel overview

  1. Instrument cluster
  2. Light control/Turn signals
  3. Audio controls
  4. Horn
  5. Driver’s front air bag
  6. Wiper/Washer
  7. Ignition switch*
  8. Engine start/stop button*
  9. Hazard warning flasher switch
  10. Audio*
  11. Climate control system
  12. Shift lever
  13. AUX, USB, iPod
  14. Power outlet
  15. Passenger’s front air bag
  16. Glove box
