WARNING:

- Make sure that all passengers have their hands, etc. inside the vehicle while it is in motion and before closing the windows. Use the window lock switch to prevent unexpected use of the power windows.

- Do not leave children unattended inside the vehicle. They could unknowingly activate switches or controls and become trapped in a window. Unattended children could become involved in serious accidents.

The power windows operate when the ignition switch is placed in the ON position, or for about 45 seconds after the ignition switch is placed in the OFF position. If the drivers or passengers door is opened during this period of about 45 seconds, power to the windows is canceled.

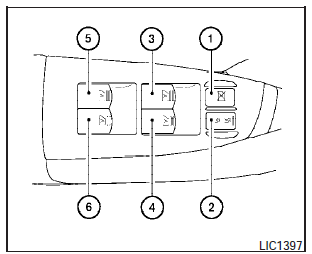

1. Window lock button.

1. Window lock button.

2. Power door lock switch.

3. Drivers side automatic window switch.

4. Front passengers side automatic window switch.

5. Left rear passengers side automatic window switch.

6. Right rear passengers side automatic window switch.

Drivers side power window switch

The drivers side control panel is equipped with switches to open or close all of the windows.

To open a window, push the switch to the first detent and continue to hold down until the desired window position is reached. To close a window, pull the switch to the first detent and continue to hold up until the desired window position is reached.

 Front passengers

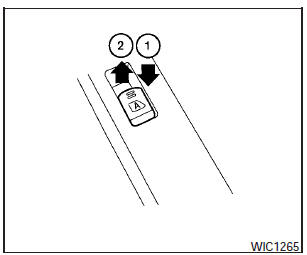

 Front passengers power window switch

The passengers window switch operates only the corresponding passengers window. To open the window, push the switch to the first detent and continue to hold it down until the desired position is reached (1) . To close the window, pull the switch to the first detent and continue to hold up until the desired window position is reached  (2).

 Rear power window

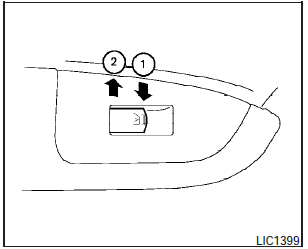

 Rear power window switch

The rear power window switches open or close only the corresponding windows. To open the window, push the switch to the first detent and continue to hold it down until the desired window position is reached (1) . To close the window, pull the switch to the first detent and continue to hold up until the desired window position is reached  (2).

Locking passengers windows

When the window lock button is depressed, only the drivers side window can be opened or closed. Push it again to cancel the window lock function.

 Automatic operation

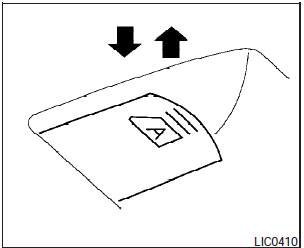

 Automatic operation

To fully open a window equipped with automatic operation, press the window switch down (only drivers side shown) to the second detent and release it; it need not be held. The window automatically opens all the way. To stop the window, lift the switch up while the window is opening.

To fully close a window equipped with automatic operation, pull the switch up to the second detent and release it; it need not be held. To stop the window, press the switch down while the window is closing.

Auto-reverse function

The auto-reverse function can be activated when a window is closed by automatic operation.

Depending on the environment or driving conditions, the auto-reverse function may be activated if an impact or load similar to something being caught in the window occurs.

WARNING:

There are some small distances immediately before the closed position which cannot be detected. Make sure that all passengers have their hands, etc., inside the vehicle before closing the window.

If the vehicles battery is disconnected, replaced, or jump started, the power window auto-reverse function may not operate properly. If this occurs, please contact the dealer to re-initialize the power window auto-reverse system.

If the control unit detects something caught in a window equipped with automatic operation as it is closing, the window will be immediately lowered.

If the windows do not close automatically

If the power window automatic function (closing only) does not operate properly, perform the following procedure to initialize the power window system.

1. Place the ignition switch in the ON position.

2. Close the door.

3. Open the window more than halfway by operating the power window switch.

4. Pull the power window switch and hold it to close the window, and then hold the switch for more than 3 seconds after the window is closed completely.

5. Release the power window switch. Operate the window by automatic function to confirm the initialization is complete.

6. Perform steps 2 through 5 above for other windows.

If the power window automatic function does not operate properly after performing the above procedure, have your vehicle checked by a NISSAN dealer.
