Important safety notes

WARNING
When leaving the vehicle, always remove the SmartKey from the ignition lock. Always take the SmartKey with you and lock the vehicle.

Do not leave children unsupervised in the vehicle, even if they are secured in a child restraint system, and do not give them access to an unlocked vehicle. A child's unsupervised access to a vehicle could result in an accident and/or serious personal injury. They could:

- injure themselves on vehicle parts
- be seriously or fatally injured by extreme heat or cold
- injure themselves or have an accident with vehicle equipment that may still be in operation even after the SmartKey has been removed from the ignition, such as the seat adjustment, steering wheel adjustment or memory function.

Do not expose the child restraint system to direct sunlight. The child restraint system's metal parts, for example, could become very hot, and a child could be burned on these parts.

WARNING
If a key ring is too heavy or too large, the weight acting on the key could cause it to turn in the ignition lock or catch on the steering wheel. This could cause the engine to be switched off suddenly. You could lose control of the vehicle and cause an accident. Do not attach any heavy or large key rings to the key that is inserted in the ignition.

General notes

If you cannot lock or unlock the vehicle with the SmartKey, either the battery in the SmartKey is discharged, the SmartKey is faulty or the starter battery is discharged.

•► Check the battery in the SmartKey and replace it if necessary.

•► Unlock the driver's door using the mechanical key.

•► Lock the vehicle using the mechanical key.

•► Have the starter battery and the battery contacts checked at a qualified specialist workshop.

If the SmartKey is faulty, contact Roadside Assistance or a qualified specialist workshop.

Smart Key functions

General notes

USA only:

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and

2. this device must accept any interference received, including interference that may cause undesired operation.

Any unauthorized modification to this device could void the user’s authority to operate the equipment.

The Product label with FCC ID and IC certification number can be found in the battery case of the SmartKey.

Canada only:

This device complies with RSS-210 of Industry Canada. Operation is subject to the following two conditions:

1. This device may not cause interference, and

2. this device must accept any interference received, including interference that may cause undesired operation of the device.

Any unauthorized modification to this device could void the user’s authority to operate the equipment.

The Product label with FCC ID and IC certification number can be found in the battery case of the SmartKey.

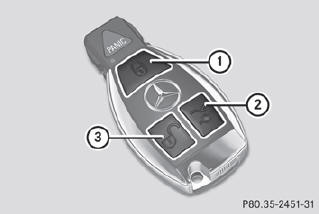

Locking and unlocking centrally

The SmartKey centrally locks/unlocks:

- the doors
- the trunk lid/tailgate
- the fuel filler flap

When unlocking, the turn signals flash once.

When locking, they flash three times

When it is dark, the surround lighting also comes on if it is activated in the on-board computer.

If you activate the acoustic locking confirmation function, you will hear the following, depending on the date of production of the vehicle:

- an acoustic signal when locking
or
- one acoustic signal when unlocking and three when locking.

The audible signal can be activated and deactivated using the on-board computer.

•► To unlock centrally: press the % button.

If you do not open the vehicle within approximately 40 seconds of unlocking:

- the vehicle is locked again.
- the theft deterrent locking system is armed again.

•► To lock centrally: press the & button.

KEYLESS-GO

General notes

USA only:

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and 2. this device must accept any interference received, including interference that may cause undesired operation.

Any unauthorized modification to this device could void the user’s authority to operate the equipment.

The Product label with FCC ID and IC certification number can be found in the battery case of the SmartKey.

Canada only:

This device complies with RSS-210 of Industry Canada. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and

2. this device must accept any interference received, including interference that may cause undesired operation.

Any unauthorized modification to this device could void the user’s authority to operate the equipment.

The Product label with FCC ID and IC certification number can be found in the battery case of the SmartKey.

Important notes on the use of KEYLESSGO

- The KEYLESS-GO key can be used like a conventional key.

- You can combine KEYLESS-GO functions with those of a conventional key, e.g.

unlock with KEYLESS-GO and lock with the & button.

- Always carry your KEYLESS-GO key on your person.

- Do not keep the KEYLESS-GO key together with:

- electronic devices, e.g. a mobile phone or another key
- metallic objects, e.g. coins or metal foil.

This can affect the functionality of KEYLESS-GO.

- When locking and unlocking using KEYLESS-GO, the distance between the SmartKey and the corresponding door handle must not exceed 3 ft (1 m).

- If the vehicle is parked for more than 72 hours, the KEYLESS-GO function is deactivated. Pull the outer door handle and switch on the ignition to reactivate the KEYLESS-GO function.

- If the KEYLESS-GO key is removed from the vehicle, it is possible that the system may not recognize the SmartKey. The vehicle

can then not be locked or started using KEYLESS-GO.

RIf the KEYLESS-GO key has been removed from the vehicle, e.g. if a passenger leaves the vehicle with a KEYLESS-GO key:

- if the start/stop button is pressed or if an attempt is made to lock the vehicle with the locking button on the outer door handle, the Key Not Detected message appears in the multifunction display - when the engine is running, the red Key Not Detected message appears in the multifunction display as you pull away.

Find the KEYLESS-GO key and change its position in the vehicle. Carry the KEYLESS-GO key in your shirt pocket, for example.

- If you have started the engine with the Start/Stop button, you can switch it off again by:

- pressing the Start/Stop button again
- inserting the KEYLESS-GO key into the ignition lock if the vehicle is stationary and the automatic transmission is in park position P.

- You could unlock the vehicle by mistake if the distance between the KEYLESS-GO key and the vehicle is less than 3 ft (1 m) and:

- an exterior door handle is hit by a water
jet
or
- you clean an exterior door handle.

- Bear in mind that the engine can be started by any of the vehicle occupants if there is a KEYLESS-GO key in the vehicle.

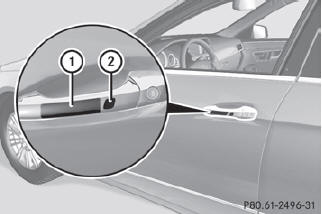

•► To unlock the vehicle: touch the inner surface of the door handle.

•► To lock the vehicle: touch sensor surface 1.

•► Convenience closing feature: touch recessed sensor surface 2 for an extended period.

If you pull on the handle of the trunk lid/ tailgate, only the trunk/cargo compartment of the vehicle is unlocked.

Changing the settings of the locking system

You can change the setting of the locking system in such a way that only the driver's door and the fuel filler flap are unlocked. This is useful if you frequently travel on your own.

•► To change the setting: press and hold down the and buttons simultaneously for approximately six seconds until the battery check lamp  flashes twice.

If the setting of the locking system is changed within the signal range of the vehicle, pressing the or button locks or unlocks the vehicle.

The SmartKey now functions as follows:

•► To unlock the driver's door: press the button once.
•► To unlock centrally: press the button twice.
•► To lock centrally: press the button.

The KEYLESS-GO function is changed as follows:

•► To unlock the driver's door: touch the inner surface of the door handle on the driver's door.
•► To unlock centrally: touch the inner surface of the door handle on the frontpassenger door or the rear door.
•► To lock centrally: touch the outer sensor surface on one of the door handles.

Restoring the factory settings

•► Press the and buttons simultaneously for approximately six seconds until the battery check lamp flashes twice.

Mechanical key

General notes

If the vehicle can no longer be locked or unlocked with the SmartKey, use the mechanical key.

If you use the mechanical key to unlock and open the driver's door or the trunk lid/ tailgate, the anti-theft alarm system will be triggered.

There are several ways to turn off the alarm:

•► To turn the alarm off with the SmartKey: press the or button on the SmartKey.
or
•► Insert the SmartKey into the ignition lock.
or
•► To deactivate the alarm with KEYLESSGO: press the Start/Stop button in the ignition lock. The SmartKey must be in the vehicle.
or
•► Lock or unlock the vehicle using KEYLESSGO.

The SmartKey must be outside the vehicle.

If you unlock the vehicle using the mechanical key, the fuel filler flap will not be unlocked automatically.

•► To unlock the fuel filler flap: insert the SmartKey in the ignition lock.

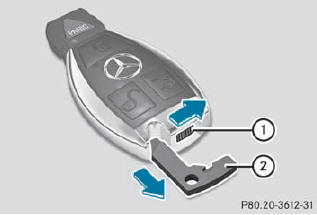

Removing the mechanical key

•► Push release catch 1 in the direction of the arrow and at the same time, remove mechanical key 2 from the SmartKey.

Smart Key battery

Important safety notes

Have the batteries changed at a qualified specialist workshop.

WARNING
Batteries contain toxic substances.

Swallowing batteries can lead to serious health issues or death.

Keep batteries out of the reach of children.

Seek medical attention immediately if a battery is swallowed.

WARNING
The SmartKey batteries contain perchlorate material, which may require special handling and regard for the environment. Observe government disposal guidelines. California residents, see www.dtsc.ca.gov/ HazardousWaste/Perchlorate/ index.cfm.

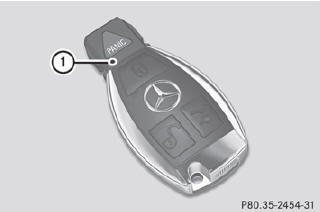

Checking the battery

•► Press the or button.

The battery is working properly if battery check lamp 1 lights up briefly If battery check lamp 1 does not light up briefly during the test, the battery is discharged.

•► Changing the battery

You can obtain the battery at a qualified specialist workshop.

i If the SmartKey battery is checked within the signal reception range of the vehicle, pressing the or button locks or unlocks the vehicle.

Changing the battery

You require a CR 2025 3 V cell battery.

•► Take the mechanical key out of the SmartKey

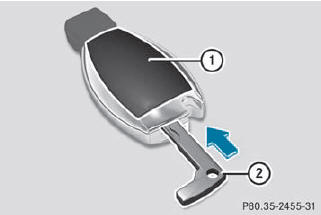

•► Press mechanical key 2 into the opening in the SmartKey in the direction of the arrow until battery tray cover 1 opens.

When doing so, do not hold cover 1 shut.

•► Remove battery tray cover 1.

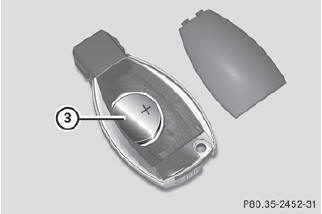

•► Repeatedly tap the SmartKey against your palm until battery 3 falls out.

•► Insert the new battery with the positive terminal facing upwards. Use a lint-free cloth to do so.

•► Make sure that the surface of the battery is free from lint, grease and all other forms of contamination.

•► Insert the front tabs of battery tray cover 1 and then press to close it.

•► Insert the mechanical key into the SmartKey.

•► Check the function of all SmartKey buttons on the vehicle.

Problems with the SmartKey

Problem	Possible causes/consequences and  Solutions
You cannot lock or unlock the vehicle using the SmartKey.	The SmartKey battery is discharged or nearly discharged. •► Try again to lock/unlock the vehicle using the remote control function of the SmartKey. Point the tip of the SmartKey at the driver's door handle from close range and press the / button. If this does not work: •► Check the SmartKey battery and replace it if necessary •► Lock or unlock the vehicle using the mechanical key. The SmartKey is faulty. •► Lock or unlock  the vehicle using the mechanical key. •► Have the SmartKey checked at a qualified specialist workshop.
You can no longer lock or unlock the vehicle using KEYLESS-GO.	KEYLESS-GO is in standby mode because the vehicle has not been unlocked for an extended period. •► Pull the door handle and then turn the SmartKey to position 2 in the ignition lock. There is interference from a powerful source of radio waves. •► Lock/unlock the vehicle using the remote control function of the SmartKey. Point the tip of the SmartKey at the driver's door handle from close range and press the / button.
	There is a malfunction with KEYLESS-GO. •► Lock/unlock the vehicle using the remote control function of the SmartKey. Point the tip of the SmartKey at the driver's door handle from close range and press the / button. •► Have KEYLESS-GO checked at a qualified specialist workshop. If this does not work: •►  Check the SmartKey battery and replace it if necessary. •►  Lock or unlock the vehicle using the mechanical key.
You have lost a SmartKey.	•►  Have the SmartKey deactivated at a qualified specialist workshop. •►  Report the loss immediately to the vehicle insurers. •►  If necessary, have the locks changed as well.
You have lost the mechanical key.	•►  Report the loss immediately to the vehicle insurers. •►  If necessary, have the locks changed as well.
The engine cannot be started using the SmartKey.	The on-board voltage is too low. •►  Switch off non-essential consumers, e.g. seat heating or interior lighting, and try to start the engine again. If this does not work: •►  Check the starter battery and charge it if necessary. or •► Jump-start the vehicle. or •►  Consult a qualified specialist workshop.
The engine cannot be started using the SmartKey.	The steering lock is mechanically blocked3. •► Remove the SmartKey and reinsert it into the ignition lock. While doing this, turn the steering wheel in both directions.
The engine cannot be started using KEYLESSGO. The SmartKey is in the vehicle.	A door is open. Therefore, the SmartKey cannot be detected as easily. •► Close the door and try to start the vehicle again. There is interference from a powerful source of radio waves. •►  Start your vehicle with the SmartKey in the ignition lock.
