Ford Fusion: Technical specifications
Vehicle fluids
* Providing it meets the specification defined by WSS-M2C913-C, you can also useFord Engine Oil or an alternative engine oil.
Topping up the oil: If you are unable to find an oil that meets the specification definedby WSS-M2C913-C, you must use SAE 5W-30 (preferred), SAE 5W-40 (exceptvehicles with E85 fuel) or SAE 10W-40 that meets the specification defined by eitherACEA A5/B5 (preferred) or ACEA A3/B3. Using these oils can result in longer enginecranking periods, reduced engine performance, reduced fuel economy and increasedemission levels.
CAUTION:
Do not use oils which do not meet the specifications or requirements. Use ofunsuitable oil may lead to engine damage which is not covered by the FordWarranty.
Note: If you operate your vehicle in temperatures below -20°C, you must not use SAE10W-40 engine oil.
Castrol engine oil recommended.

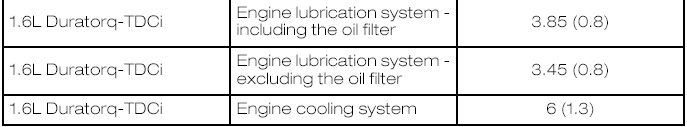

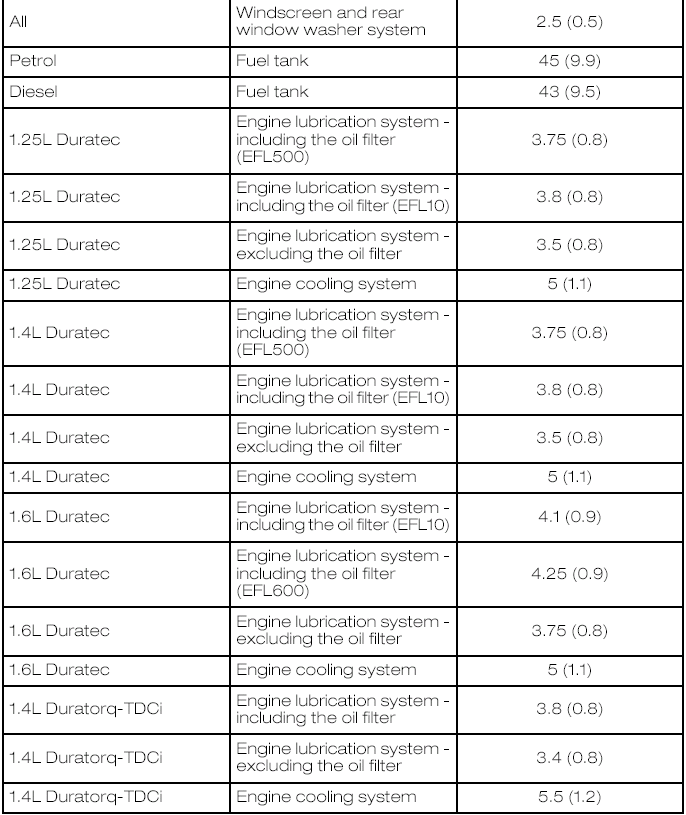

Capacities
Washer fluid check
Washer fluid check
The front and rear washer systems aresupplied from the same reservoir.
Refit the washer fluid reservoir capsecurely after topping up.
Washer jets
To ensure the system functions ...
