Ford Fusion: Telephone setup
Requirements for cradleconnection
Your phone must be fitted in a mobilephone holder before it can be used as acradle phone with your handsfree/voicecontrol system. You will be able topurchase the correct holder for yourphone from your dealer.
Placing your phone in thecradle
Note: Your phone must be fitted in amobile phone holder to allow you toconnect the phone to the cradle.

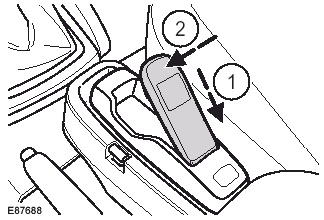

Connect your phone to the cradle.
1. Place the base of the phone in thecradle connection.
Note: Make sure that the phone ispushed fully rearwards in the cradle.
2. Push the phone downwards until aclick is heard.
Note: The connection to the system willbe displayed on your phone.
Phonebook
After start up access to the phonebookcan be delayed for up to two minutes.
Phonebook categories
Depending on your phonebook entry,different categories can be displayed inthe audio or navigation unit.
For example:
Note: Entries may be displayed withouta category attachment.

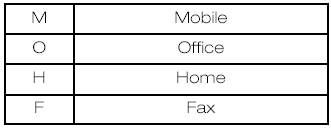

The category can also be indicated as anicon:
Phone
Mobile
Home
Office
Fax
Making a phone an activephone
When using the system for the first time,no phone is connected to the system.
After switching on the ignition the cradlephone and the Bluetooth phone arerecognized differently by the system.
Bluetooth phone
After bonding a Bluetooth phone to thesystem, this becomes the active phone.
For further information refer to the phonemenu.
However, in some cases the Bluetoothphone has to be activated by pressingthe appropriate station button on theaudio or navigation unit.
Turning the ignition back on again, the lastactive phone is picked up by the system.
Bond another Bluetooth phone
Note: Before another Bluetooth phonecan be bonded, the existing activeBluetooth connection has to bedeactivated by the mobile phone.
Bond a new Bluetooth phone asdescribed in the requirements for aBluetooth connection.
Phones stored in the system areaccessible by using the phone list on theaudio or navigation unit.
Note: If six (five Bluetooth phones forcradle phone system) Bluetooth phoneshave been bonded, one of these has tobe deleted in order to bond a new phone.
Cradle phone
With your phone fitted in the mobile phonecradle this does not automatically becomethe active phone.
In these cases refer to Changing theactive phone in the appropriate sectionwhich describes the system fitted to yourvehicle.
General information
This section describes the functions andfeatures of the Bluetooth mobile phoneand voice control system.
The section covers the followingvariations:
• a mobile phone with a mobile phonecradle witho ...
Bluetooth setup
Before you can use your telephone withyour vehicle it must be bonded to thevehicle telephone system.
Handling of phones
A phone can be connected to the vehiclesystem by using either a cradleconnecti ...
