Nissan Maxima: iPod Player Operation without Navigation System (if so equipped) - Monitor, climate, audio, phone and voice recognition systems - Nissan Maxima Owners ManualNissan Maxima: iPod Player Operation without Navigation System (if so equipped)

Connecting iPodT

To connect an iPodT to the vehicle so that the iPodT can be controlled with the

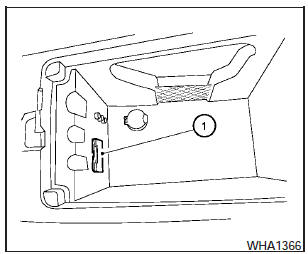

To connect an iPodT to the vehicle so that the iPodT can be controlled with the audio system controls and display screen, use the USB jack located in the center console. Open the protective cover (1) on the USB jack in the center console. Then connect the iPodT-specific end of the cable to the iPodT and the USB end of the cable to the USB jack on the vehicle. When the ignition switch is in the ACC or ON position, the battery of your iPodT (if compatible) is charged during the connection to the vehicle.

While connected to the vehicle, the iPodT can only be operated by the vehicle audio controls.

To disconnect the iPodT from the vehicle, remove the USB end of the cable from the USB jack on the vehicle, then remove the cable from the iPodT.

* iPodT is a trademark of Apple Inc., registered in the U.S. and other countries.

Compatibility

The following models are available:

- iPodT Classic - 1st through 6th generation.

- iPodT Mini - 1st and 2nd generation.

- iPodT Nano - 1st through 3rd generation.

- iPodT Touch - 1st generation.

- iPhoneT - 1st generation.

Make sure that your iPodT firmware is updated.

 Audio main operation
 Audio main operation

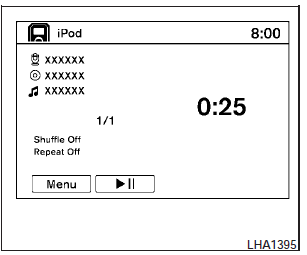

Place the ignition switch in the ACC or ON position. Press the AUX button repeatedly to switch to the iPodT mode.

If the system has been turned off while the iPodT was playing, pressing the VOL/ON·OFF control knob will start the iPodT.

AUX button:

When the AUX button is pressed with the system off and the iPodT connected, the system will turn on. If another audio source is playing and the iPodT is connected, press the AUX button repeatedly until the center display changes to the iPodT mode.

 Interface:
 Interface:

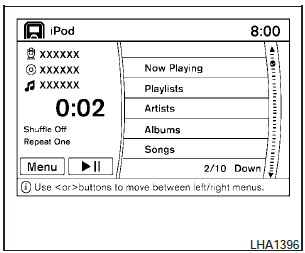

The interface for iPodT operation shown on the vehicle center display is similar to the iPodT interface.

Use the NISSAN controller and the BACK button to play the iPodT with your favorite settings.

The following items can be chosen from the menu list screen. For further information about each item, see the iPodT Owners Manual.

- Playlists.

- Podcasts.

- Songs.

- Albums.

- Artists.

- Genres.

- Composers.

- Audiobooks.

The following keys shown on the screen are also available:

- MENU: returns to the previous screen.

- SEEK/CAT and TRACK buttons:: plays/pauses the music selected.

SEEK/CAT and TRACK buttons:

When the TRACK button is pressed for less than 1.5 seconds while the iPodT is playing, theSEEK/CAT button orTRACK button is pressed for less than 1.5 seconds while the iPodT is playing, the TRACK button is pressed for less than 1.5 seconds while the iPodT is playing, the next track or the beginning of the current track on the iPodT will be played.

When the TRACK button is pressed for more than 1.5 seconds while the iPodT is playing, theSEEK/CAT button orTRACK button is pressed for more than 1.5 seconds while the iPodT is playing, the TRACK button is pressed for more than 1.5 seconds while the iPodT is playing, the iPodT will play while fast forwarding or rewinding. When the button is released, the iPodT will return to the normal play speed.
