 Meters and gauges

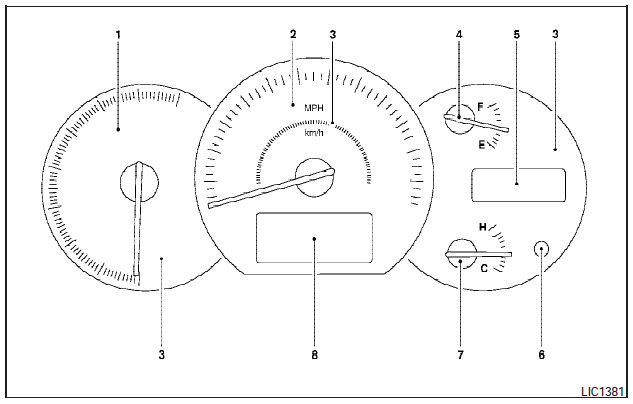

 Meters and gauges

1. Tachometer.

2. Speedometer.

3. Warning/indicator lights.

4. Fuel gauge.

5. Odometer/twin trip odometer.

6. Trip odometer change button.

7. Engine coolant temperature gauge.

8. Vehicle information display.
