Important safety notes

The fuses in your vehicle serve to close down faulty circuits. If a fuse blows, all the components on the circuit and their functions stop operating.

Only use fuses approved by Mercedes-Benz with the specified amperage for the system in question and do not attempt to repair or bridge a blown fuse. Using other than approved fuses or using repaired or bridged fuses may cause an overload leading to a fire, and/or cause damage to electrical components and/or systems. Have the cause determined and remedied by an authorized Mercedes-Benz Center.

Blown fuses must be replaced with fuses of the same rating, which you can recognize by the color and value. The fuse ratings are listed in the fuse allocation chart. An authorized Mercedes-Benz Center will be happy to advise you.

If a fuse has blown, contact a breakdown service or an authorized Mercedes-Benz Center.

If the newly inserted fuse also blows, have the cause traced and rectified at a qualified specialist workshop, e.g. an authorized Mercedes-Benz Center.

Only use fuses that have been approved for Mercedes-Benz vehicles and which have the correct fuse rating for the system concerned. Otherwise, components or systems could be damaged.

Before changing a fuse

•► Park the vehicle and apply the parking brake.

•► Switch off all electrical consumers.

•► Remove the SmartKey from the ignition lock.

The fuses are located in various fuse boxes:

 - fuse box in the engine compartment on the left-hand side of the vehicle, when viewed in the direction of travel

 - fuse box in the trunk/cargo compartment on the right-hand side of the vehicle, when viewed in the direction of travel

The fuse allocation chart is located in the vehicle tool kit in the stowage compartment under the trunk/cargo compartment floor.

Fuse box in the engine compartment

•► Make sure that the windshield wipers are turned off.

Make sure that the windshield wipers are switched off and that the SmartKey is removed from the ignition lock before you open the cover of the fuse box. Otherwise, the windshield wipers and the wiper rods above the cover could be set in motion. This could lead to you or others being injured by the wiper rods.

•► Open the hood

•► Remove any existing moisture from the

•► Remove any existing moisture from the fuse box using a dry cloth.

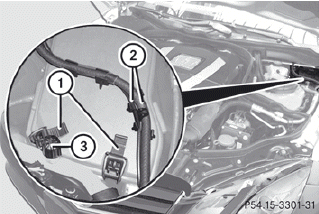

•► Take lines 2 from the guides.

•► Move aside lines 2. Route the lines behind connection 3 to do this.

•► To open: open clamps 1.

•► Remove the fuse box cover forwards.

Make sure that no moisture can enter the fuse box when the cover is open.

•► To close: check whether the rubber seal is lying correctly in the cover.

•► Insert the cover at the rear of the fuse box into the retainer.

•► Fold down the cover and close clamps 1.

•► Secure lines 2 in the guides.

The cover must be seated properly, otherwise moisture or dirt could impair the function of the fuses.

•► Close the hood

Fuse box in the trunk

•► Open the trunk lid

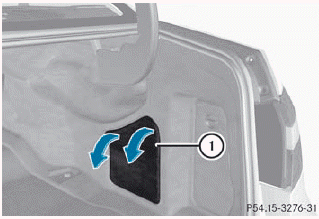

•► To open: release cover 1 at the top right

•► To open: release cover 1 at the top right and left-hand sides with a flat object.

•► Open cover 1 downwards in the direction of the arrow.

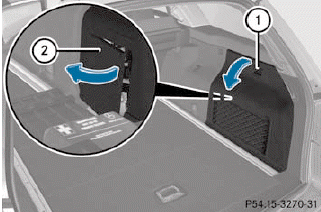

Fuse box in the cargo compartment

•► Open the tailgate.

•► To open: pull handle 1.

•► To open: pull handle 1.

•► Open the cover downwards.

•► Fold trim 2 forwards.
