Ford Fusion: Rear seats - Seats - Ford Fusion Owners manualFord Fusion: Rear seats

WARNINGS:

Make sure that the seats and theseatbacks are secure and fullyengaged in their catches.

When folding the seatbacks down,take care not to get your fingerscaught between the seatback andseat frame.

When folding the seatbacks up,make sure that the belts are visibleto an occupant and not caughtbehind the seat.

CAUTION:

Lower the head restraints.

1. Pull the unlock levers.

Folding the seatbacks down

1. Pull the unlock levers.

2. Push the seatback forwards.

1. Lift the seat cushion.

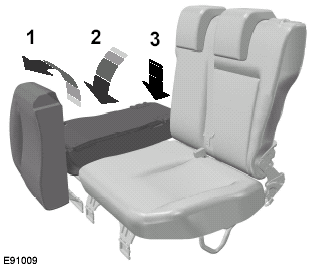

Creating a level load floor

1. Lift the seat cushion.

2. Pull the locking lever and push theseatback forwards.

3. Press the rear of the seatbackdownwards.
